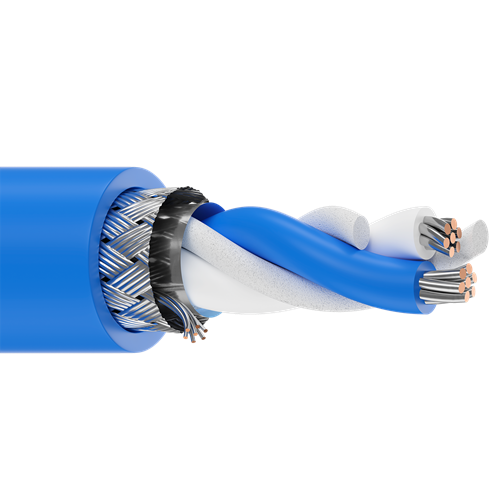

Belden 3073F 18 AWG 1 Pair 7x26 Stranding Tinned Copper 600V Twinax Cable

Description:

Twinax 100Ω, 1 Pair 18 AWG (7x26) Tinned Copper, PP Insulation, Overall Beldfoil+Tinned Copper Braid (55%) Shield, PVC Outer Jacket, TC, PLTC, ITC, CMG.

Insulation:

• Material: PP - Polypropylene
• Nom. Insulation Diameter: 0.128 in (3.25 mm)

Outer Shield:

• Layer: 1
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%

• Layer: 2
• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 55%

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.388 in (9.86 mm)
• Overall Cable Diameter (Nominal): 0.388 in (9.86 mm)

Standards:

• Operating Temperature: -40°C to +75°C
• Nom. Characteristic Impedance: 100 Ohms
• Voltage Rating: 600 V (TC), 300 V (CMG, PLTC)

Applications:

• Harsh environment, IIoT, factory or process automation, video, audio, data communication, etc

Specifications:

• Size (AWG): 18
• No. of Pair: 1
• Stranding: 7x26
• Nom. Diameter: 0.046 in
• Conductor Material: TC - Tinned Copper
• Part Number: 3073F
