Belden 27600A 18 AWG 6 Conductor 7x26 Stranding Bare Copper 600V Multi-Conductor Cable

*Data provided on this page is subject to change based on different manufacturers' variances

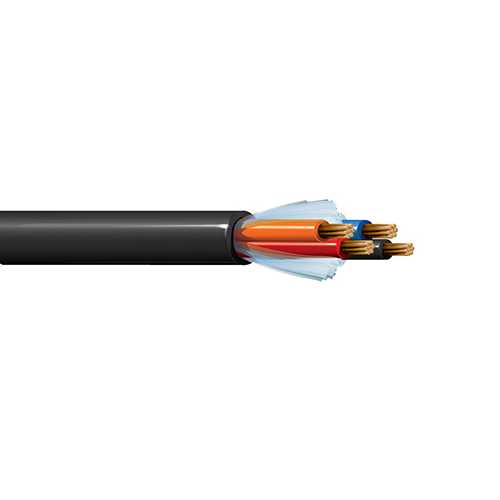

** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Belden 27600A 18 AWG 6 Conductor 7x26 Stranding Bare Copper 600V Multi-Conductor Cable

Description:

UL Type TC (1277) PVC-Nylon/PVC, 6 Conductor 18 AWG (7x26) Bare Copper, PVC-NYL Insulation E2 Color Code, Black PVC Outer Jacket, 600V TC 150V NPLF 90C Dry/Wet SUN RES DIR BUR.

Insulation:

• Element: Conductor(s)
• Material: PVC/Nylon - Polyvinyl Chloride + Nylon
• Nom. Thickness: 0.020 in (0.51 mm)
• Nom. Insulation Diameter: 0.087 in (2.2 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.047 in (1.2 mm)
• Nom. Diameter: 0.352 in
• Overall Cable Diameter (Nominal): 0.352 in

Standards:

• UL Temperature: 90°C Dry, 75°C Wet
• Voltage Rating: 600 V (TC), 150 V (NPLF)
• Operating Temperature: Wet/Dry: -30°C to 90°C

Applications:

• Power and Control Applications up to 600V; Class 1 Division 2 Hazardous Locations; Recommended Cable Gland Belden BTC075A0551RA.

Specifications:

• Size (AWG): 18
• No. of Conductor: 6
• Stranding: 7x26
• Conductor Material: BC - Bare Copper
• Part Number: 27600A
