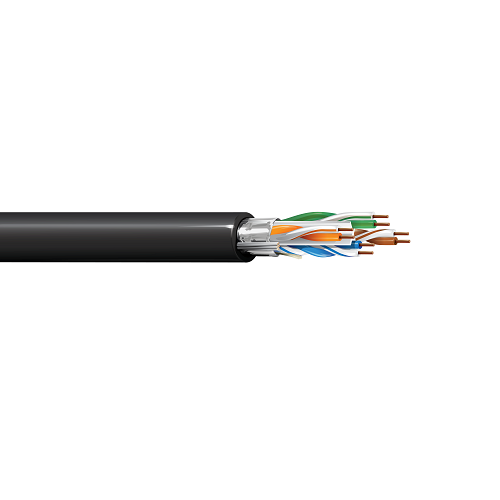

Belden 2412FS 23 AWG 4 Pair Solid Bare Copper 300V Premise Horizontal Cable

Description:-

Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket.

Insulation:-

• Material: PO - Polyolefin

Outer Shield:-

• Shield Type: Tape
• Material: Polyester + Bi-Laminate (Alum+Poly)
• Coverage [%]: 100%
• Drainwire Type: 26 AWG (7x34) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.275 in (6.99 mm)
• Overall Cable Diameter (Nominal): 0.275 in (6.99 mm)
• Separator: Center Member (Patented X-Spline)

Standards:-

• UL Voltage Rating: 300 V (CMR)
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Premise Horizontal Cable, Ethernet 1000BASE-T, Ethernet 100BASE-TX, Ethernet 10BASE-T, Surveillance, PoE++, PoE+, PoE, Noisy Environments

Specifications:-

• Size (AWG): 23
• No. of Pairs: 4
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 2412FS
