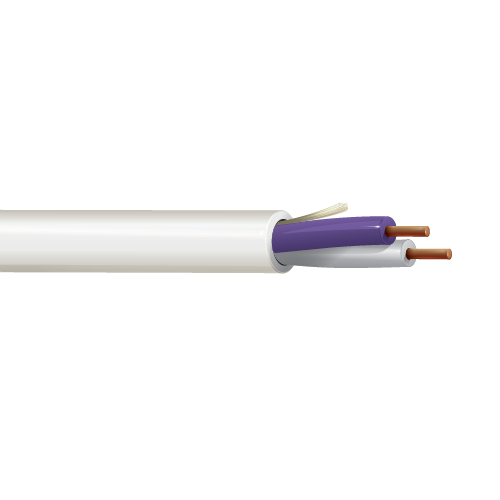

Belden 2285R 18 AWG 1 Conductor Solid Bare Copper 300V Light Dimmer Cable

Description:-

Light Dimmer Cable, 2 Conductor 18 AWG solid bare copper conductors with polyolefin insulation, CMR rating, PVC jacket with ripcord.

Insulation:-

• Material: PP - Polypropylene
• Nom. Thickness: 0.007 in (0.18 mm)
• Nom. Insulation Diameter: 0.0545 in (1.38 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.017 in (0.43 mm)
• Nom. Diameter: 0.143 in (3.63 mm)
• Overall Cable Diameter (Nominal): 0.143 in (3.63 mm)

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Ballast Wiring and Connection, Addressable Fire Systems, Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Specifications:-

• Size (AWG): 18
• No. of Conductor: 1
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 2285R
