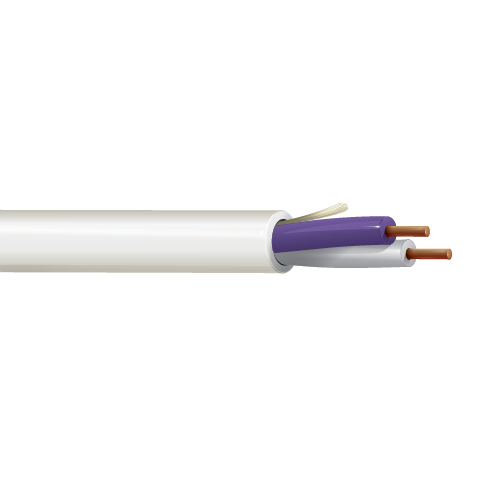

Belden 2285P 18 AWG 2 Conductor Solid Bare Copper 300V Light Dimmer Cable

Description:-

Light Dimmer Cable, 2 Conductor 18 AWG solid bare copper conductors with Flamarrest insulation, CMP rating, Flamarrest Low Smoke PVC jacket with ripcord.

Insulation:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.010 in (0.25 mm)
• Nom. Insulation Diameter: 0.0605 in (1.54 mm)

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.015 in (0.38 mm)
• Nom. Diameter: 0.147 in (3.73 mm)
• Overall Cable Diameter (Nominal): 0.147 in (3.73 mm)

Standards:-

• UL Voltage Rating: 300 V
• Operating Temperature Range: -20°C To +75°C

Applications:-

• Ballast Wiring and Connection, Addressable Fire Systems, Data Circuits, Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits

Specifications:-

• Size (AWG): 18
• No. of Conductor: 2
• Stranding: Solid
• Conductor Material: BC - Bare Copper
• Part Number: 2285P
