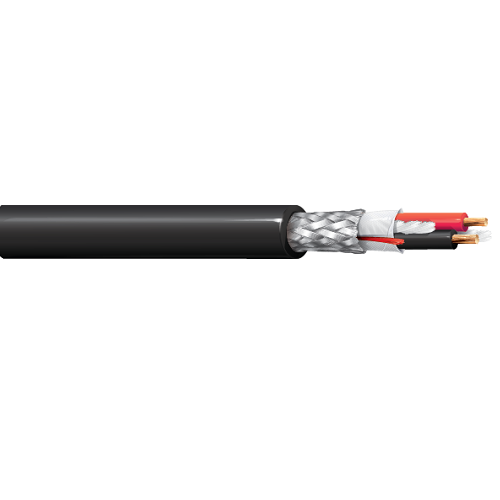

Belden 2221 26 AWG 2 Conductor 30x40 Stranding Bare Copper 300V Audio Cable

Description:-

26 AWG stranded (30x40) BC conductors cabled with fillers, Datalene insulation, conductors cabled with fillers, TC "French Braid" Shield (95% coverage), Belflex PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 0.050 in (1.3 mm)

Outer Shield:-

• Shield Type: French Braid
• Material: Tinned Copper (TC)
• Coverage [%]: 95%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.17 in
• Material Trade Name: Belflex

Standards:-

• UL Voltage Rating: 300 V RMS
• Nom. Characteristic Impedance: 110 Ohm
• Operating Temperature Range: -20°C To +60°C

Applications:-

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio

Specifications:-

• Size (AWG): 26
• No. of Conductor: 2
• Stranding: 30x40
• Conductor Material: BC - Bare Copper
• Part Number: 2221
