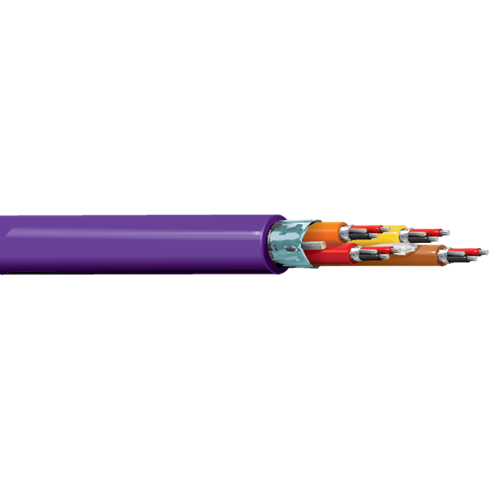

Belden 1854F 24 AWG 32 Pair 7x32 Stranding Tinned Copper 300V Audio Snake Cable

Description:

Audio Snake Cable, 32 Pair 24 AWG stranded (7x32) tinned copper, Datalene foam high density polyethylene insulation, individually shielded with bonded Beldfoil, drain wire, and have numbered and color-coded PVC jackets, overall Beldfoil shield and drain wire, CMG rated overall PVC jacket with nylon rip cord.

Insulation:

• Material: PE - Polyethylene (Foam)
• Nom.Thickness: 0.022 in (0.56 mm)
• Nom. Insulation Diameter: 0.068 in (1.7 mm)

Inner Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 24 AWG (7x32) TC - Tinned Copper

Outer Shield:

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 16 AWG (19x29) TC - Tinned Copper

Inner Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.014 in (0.36 mm)
• Nom. Diameter: 0.167 in (4.24 mm)

Outer Jacket:

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.112 in (2.84 mm)
• Nom. Diameter: 1.346 in
• Overall Cable Diameter (Nominal): 1.346 in

Standards:

• Voltage Rating: 300 V
• Operating Temperature: -20°C to +60°C
• Nom. Characteristic Impedance: 93 Ohms

Applications:

• Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio.
