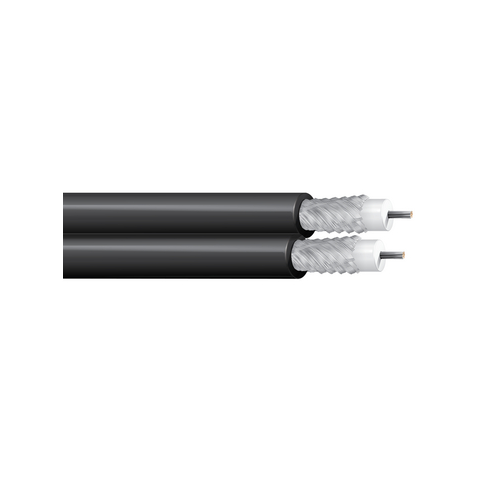

Belden 1808A 30 AWG 2 Conductor 7x38 Stranding Tinned Copper 75 Ohm S-Video Cable

Description:-

S-Video Cable, 2-30 AWG stranded tinned copper coax, foam HDPE insulation, 90% tinned copper spiral serve shield, PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nominal Diameter: 0.058 in

Inner Shield:-

• Type: Spiral Serve / Screen
• Material: Tinned Copper (TC)
• Coverage [%]: 90%

Inner Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nominal Diameter: 0.1 in

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 0.254 in

Standards:-

• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature Range: -40°C To +75°C

Specifications:-

• Size (AWG): 30
• No. of Conductor: 2
• Stranding: 7x38
• Nominal Diameter: 0.013 in
• Conductor Material: TC - Tinned Copper
• Part Number: 1808A
