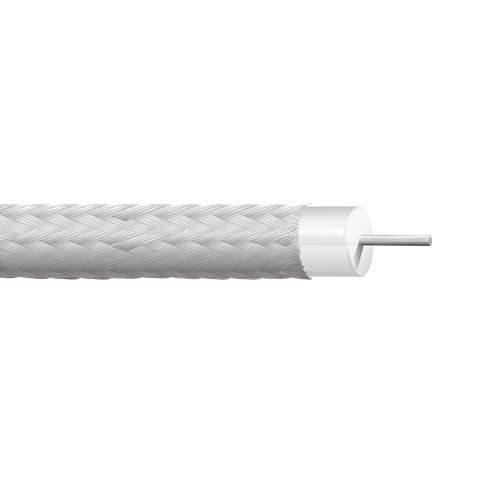

Belden 1672A 29 AWG 1 Conductor Solid Silvered Copper Covered Steel 75 Ohm Conformable Coax Cable

Description:

Conformable Coax, 75 Ohm, 29 AWG Solid Silvered Copper Covered Steel Conductor, PTFE Insulation, Copper Tape + 100% Tin-Filled Composite Braid Shield, Unjacketed.

Insulation:

• Material: PTFE - Polytetrafluoroethylene
• Nom. Insulation Diameter: 0.062 in (1.6 mm)

Outer Shield:

• Layer: 1
• Outer Shield Type: Tape
• Material: Bare Copper (BC)
• Coverage: 100%

• Layer: 2
• Outer Shield Type: Braid
• Material: Tinned Copper (TC + Tin Filled)
• Coverage: 100%

Outer Jacket:

• Overall Cable Diameter (Nominal): 0.087 in (2.2 mm)

Standards:

• Nom. Characteristic Impedance: 75 Ohm
• Operating Temperature: -70°C to +200°C
• Voltage Rating: 30 V (UL AWM Style 10245), 1500 V

Applications:

• Microwave and other high-frequency applications, Interconnect RF equipment, Radar equipment, Military communications

Specifications:

• Size (AWG): 29
• No. of Conductor: 1
• Stranding: Solid
• Nom. Diameter: 0.0114 in
• Conductor Material: SCCS - Silvered Copper Covered Steel
• Part Number: 1672A
