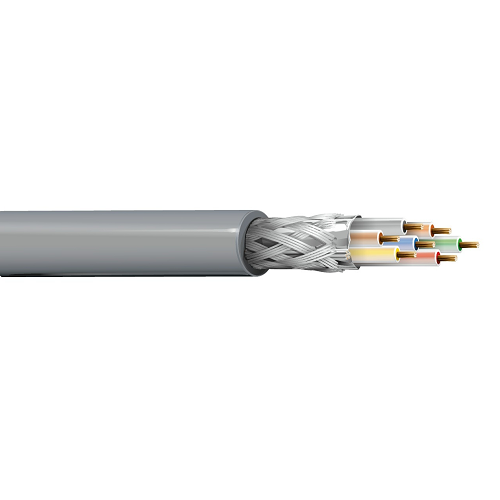

Belden 1540A 28 AWG 7 Conductor 7x36 Stranding Bare Copper 300V RISC 6000 Cable

Description:-

RISC 6000 IBM XX, YY Cable, 28 AWG stranded (7x36) bare copper conductors, patented step polyolefin insulation, twisted pairs, overall Beldfoil shielded + tinned copper braid shield (65% coverage), tinned copper drain wire, PVC jacket (see RISC color code chart below).

Insulation:-

• Material: PP/PE - Polypropylene/Polyethylene
• Nom. Thickness: 0.01 in (0.25 mm)
• Nom. Insulation Diameter: 0.035 in mm

Outer Shield:-

• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Drainwire Type: 28 AWG (7x36) TC  - Tinned Copper

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 67%

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Thickness: 0.019 in (0.48 mm)
• Nom. Diameter: 0.19 in
• Overall Cable Diameter (Nominal): 0.19 in

Standards:-

• UL Voltage Rating: 300 V

Applications:-

• For RISC Systems where energy efficiency is Key

Specifications:-

• Size (AWG): 28
• No. of Conductor: 7
• Stranding: 7x36
• Conductor Material: BC - Bare Copper
• Part Number: 1540A
