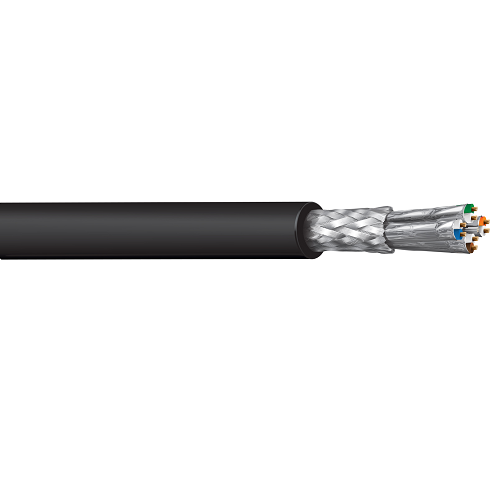

Belden 1302E 24 AWG 4 Pair 7x32 Stranding Bare Copper 100 Ohm Catsnake Category 6A Cable

Description:-

CATSNAKE S/FTP Cat6a PVC jacket.

Insulation:-

• Material: PE - Polyethylene (Foam)
• Nom. Insulation Diameter: 1.4 mm (0.055 in)

Inner Shield:-

• Element: Individual Shielded Pair
• Shield Type: Tape
• Material: Bi-Laminate (Alum+Poly)
• Coverage: 100%
• Inner Shield Table Notes: Aluminum facing outside

Outer Shield:-

• Shield Type: Braid
• Material: Tinned Copper (TC)
• Coverage: 80%
• Drainwire Type: 26 AWG (7x34) TC - Tinned Copper

Outer Jacket:-

• Material: PVC - Polyvinyl Chloride
• Nom. Diameter: 7.9 mm (0.31 in)
• Overall Cable Diameter (Nominal): 7.9 mm (0.31 in)
• Outer Jacket 1 Table Notes: Matte Finish

Applications:

Field deployable CAT6a patch horizontal and building backbone cable; CobraNEt, eSnake, Ethersound, Digital audio over Ethernet; Support current and future Category 6A and 6 applications, such as: 10GBase - T(10 Gigabit Ethernet), 1000 Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM; Compatible connectors Belden R301601 000S1 (T568A) and R301602 000S1 (T568B)

Standards:-

• UL Voltage Rating: 72 V DC
• Nom. Characteristic Impedance: 100 Ohms
• Operating Temperature Range: -30°C To +60°C

Specifications:-

• Size (AWG): 24
• No. of Pair: 4
• Stranding: 7x32
• Conductor Material: BC - Bare Copper
• Element: Individual Shielded Pair
• Part Number: 1302E
