Description:

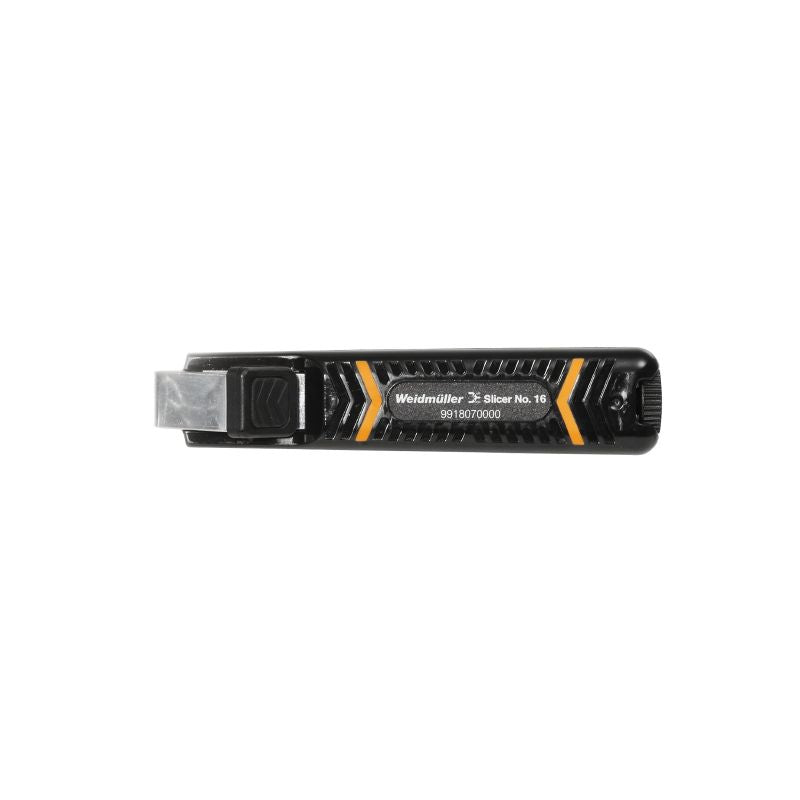

Introducing the SLICER NO 16, the ideal tool for cutting cables with outer diameters between 4 mm and 16 mm This versatile cable cutter is capable of handling both flexible and solid conductors with PVC insulation It guarantees accurate stripping for conductors up to 201 mm² in cross-section and accommodates a maximum AWG stripping range of 6 AWG Perfect for various electrical tasks, this tool combines efficiency and precision for all your cabling needs.
Features and Benefits:
•Suitable for conductors with an outer diameter of 4-16 mm.
•Handles flexible and solid conductors with PVC insulation.
Specifications:
| Depth | 35 mm |
| Depth (inches) | 1.378 inch |
| Height | 29 mm |
| Height (inches) | 1.142 inch |
| Width | 132 mm |
| Width (inches) | 5.197 inch |
| Net weight | 74 g |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| Max. conductor diameter | 16 mm |
| Min. conductor diameter | 4 mm |
| Conductor cross-section, max. | 201 mm² |
| Stripping range AWG, max. | 6 AWG |
| ETIM 6.0 | EC002109 |
| ETIM 7.0 | EC002109 |
| ETIM 8.0 | EC002109 |
| ETIM 9.0 | EC002109 |
| ETIM 10.0 | EC002109 |
| ECLASS 9.0 | 21-04-37-06 |
| ECLASS 9.1 | 21-04-37-06 |
| ECLASS 10.0 | 21-04-37-06 |
| ECLASS 11.0 | 21-04-37-06 |
| ECLASS 12.0 | 21-04-37-06 |
| ECLASS 13.0 | 21-04-37-06 |
| ECLASS 14.0 | 21-04-37-06 |
| ECLASS 15.0 | 21-04-37-06 |
