9457691000 - 10m PUR Sensor/Actuator Cable with 5 Poles

9457691000 - 10m PUR Sensor/Actuator Cable with 5 Poles

SKU: SKU: 9457691000   Download PDF

Select a Variant:
  • 9457691000 - 10m PUR Sensor/Actuator Cable with 5 Poles
Qty:
Regular price Now $19.05   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $19.05 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

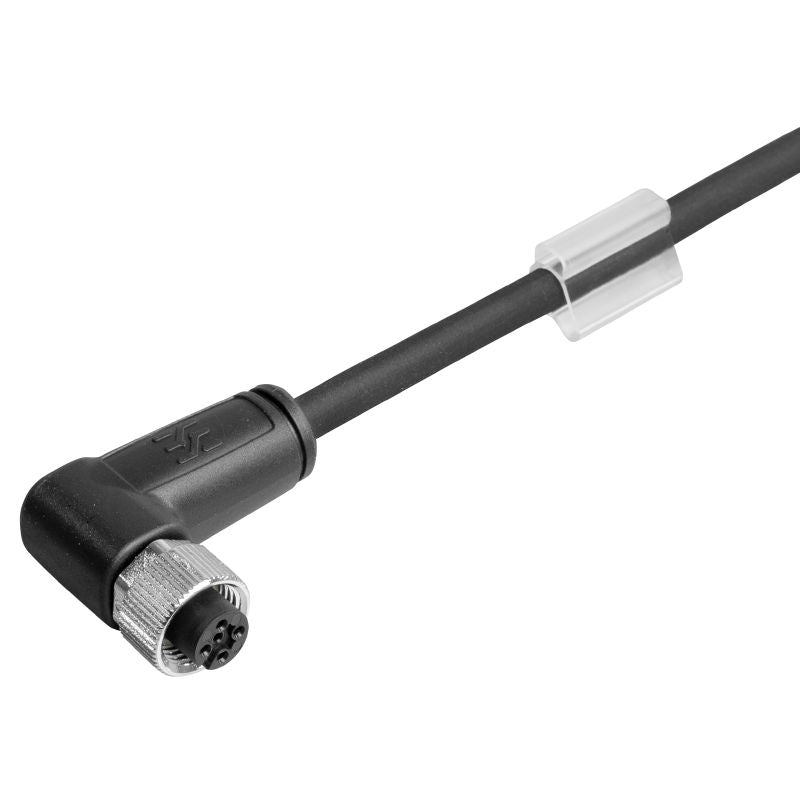

Introducing the SAIL-M12BW-5-10U sensor/actuator cable, crafted for versatile connectivity This 10-meter cable features a 5-pole end without a connector and includes an angled socket for easy installation Made from halogen-free PUR sheath material, it is both resilient and environmentally friendly This product is RoHS compliant and carries a UL certificate (number E307231), ensuring quality and safety in your applications.

Features and Benefits:

    •RoHS compliant with exemptions.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

    •Bending cycles up to 12 million.

Specifications:

 Cable length 10 m
 Outer diameter 4.7 mm ± 0.15 mm
 Number of wires 5
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 60 V
 Protection degree IP65, IP66, IP67, IP68, IP69
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Acceleration 5 m/s²
 Plugging cycles ≥ 100
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
