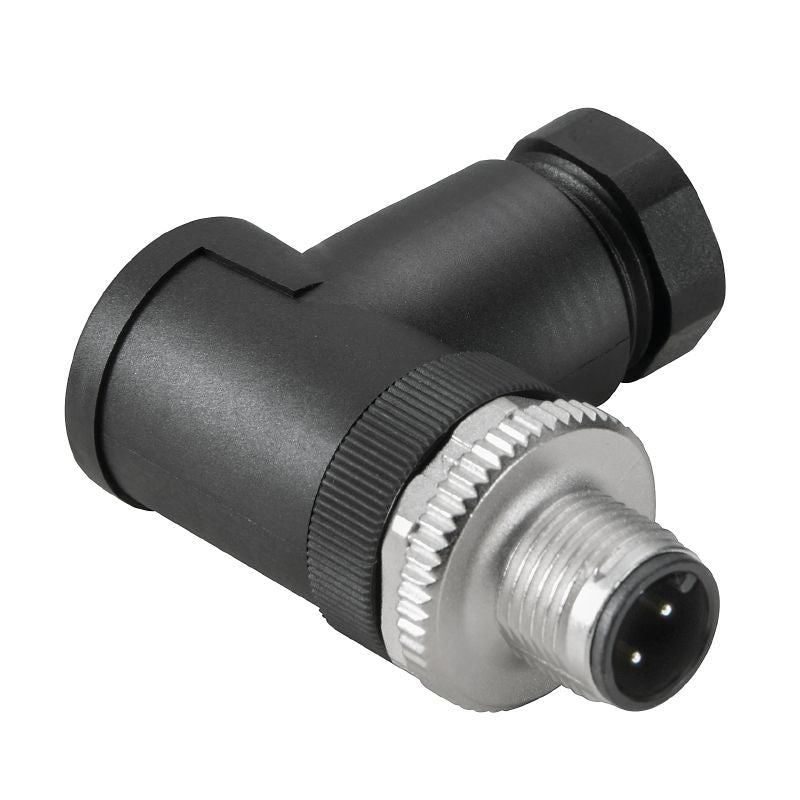

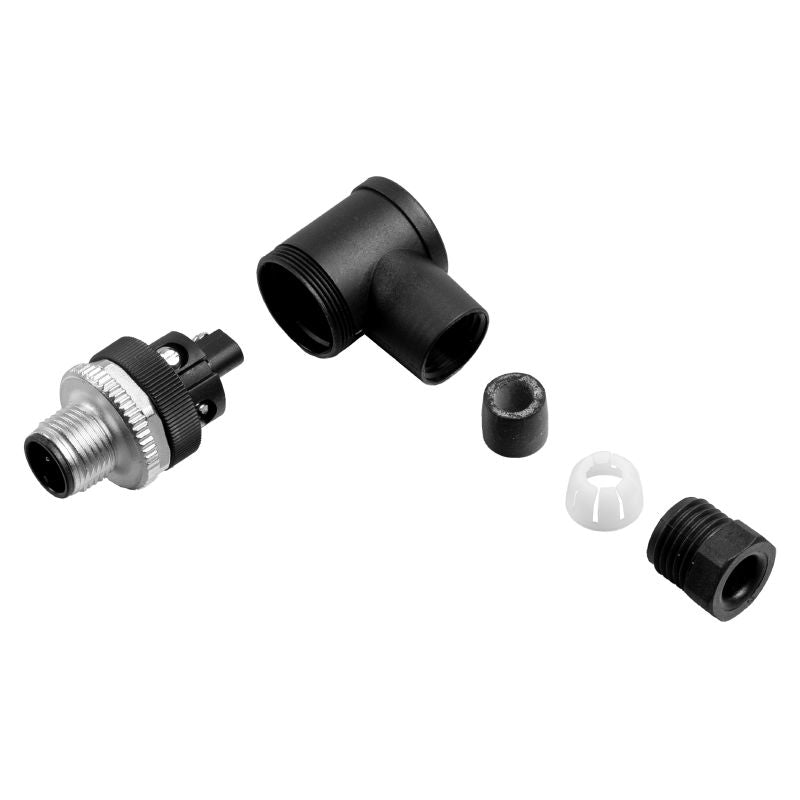

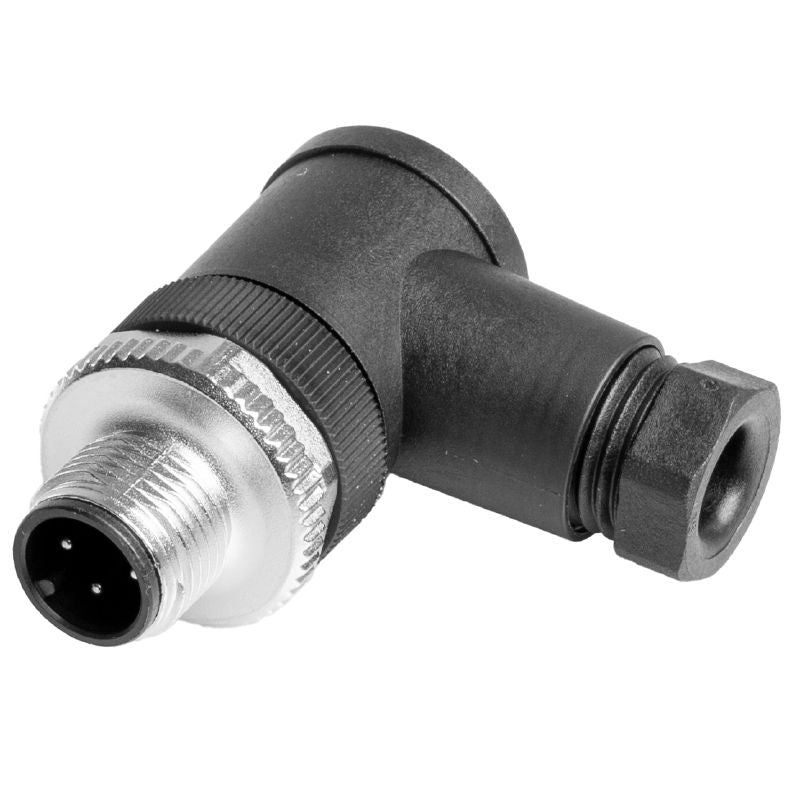

9457290000 - M12 Male Connector IP67, 4A, 4-6mm Cable Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 field attachable connector, engineered for flexibility with a cable diameter range of 4 mm to 6 mm This connector features a male contact constructed from CuSnZn material, ensuring reliable connectivity It supports a nominal current of 4 A and a voltage of 250 V, making it suitable for various applications With a robust design that withstands at least 50 insertion cycles, it achieves an IP67 protection rating, safeguarding against dust and water.

This connector adheres to IEC 61076-2-101 standards and is ROHS compliant Crafted from durable PA housing, it operates efficiently in temperatures from -40 to +85 °C.

Features and Benefits:

•Compliant with RoHS.

•Plugging cycles of at least 50.

•Temperature range of housing from -40 to +85 °C.

•IP67 protection degree.

Specifications:
