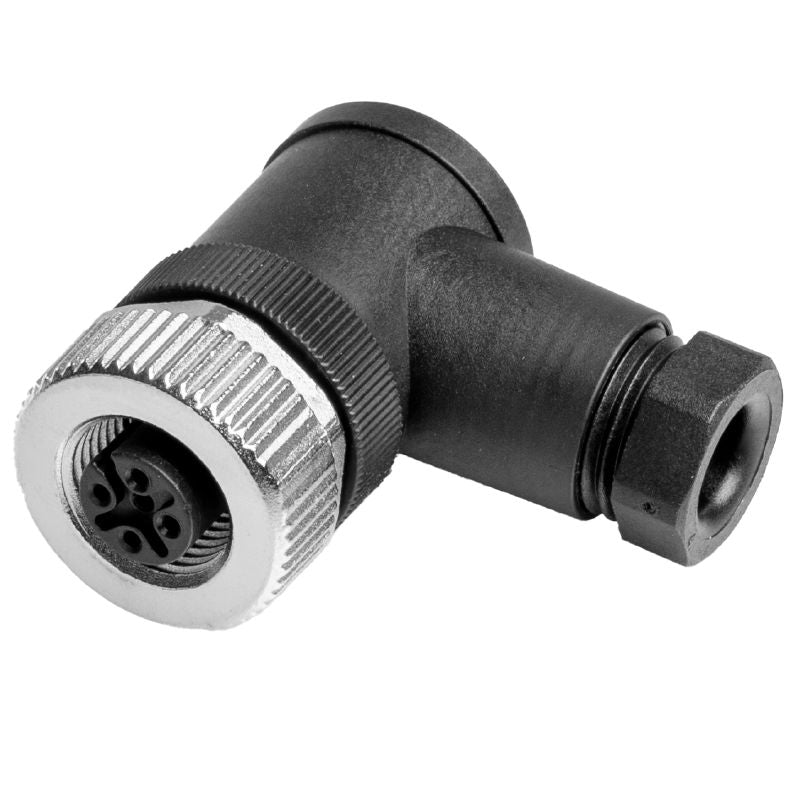

9457260000 - M12 Field Attachable Connector, 4-6mm Cable Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing an M12 field attachable connector, expertly designed for dependable electrical connections This connector accommodates cable diameters ranging from 4 mm to 6 mm, making it versatile for various applications With an A-coded configuration, it supports a conductor cross-section from 014 mm² to a maximum of 075 mm², ensuring robust performance The contact surface features durable copper-tin-zinc for 5-pole setups, while the 8-pole configuration boasts a gold-plated contact.

Built with a female contact design, its housing is made from durable PA material, providing long-lasting reliability in demanding environments.

Features and Benefits:

•Complies with RoHS with exemption.

•Has a high insulation resistance of 10^8 Ω.

•Rated nominal current of 4 A.

•Rated nominal voltage of 60 V.

•Supports at least 50 plugging cycles.

•IP67 protection degree for high waterproofing.

•Temperature range for housing: -40 to +85 °C.

Specifications:
