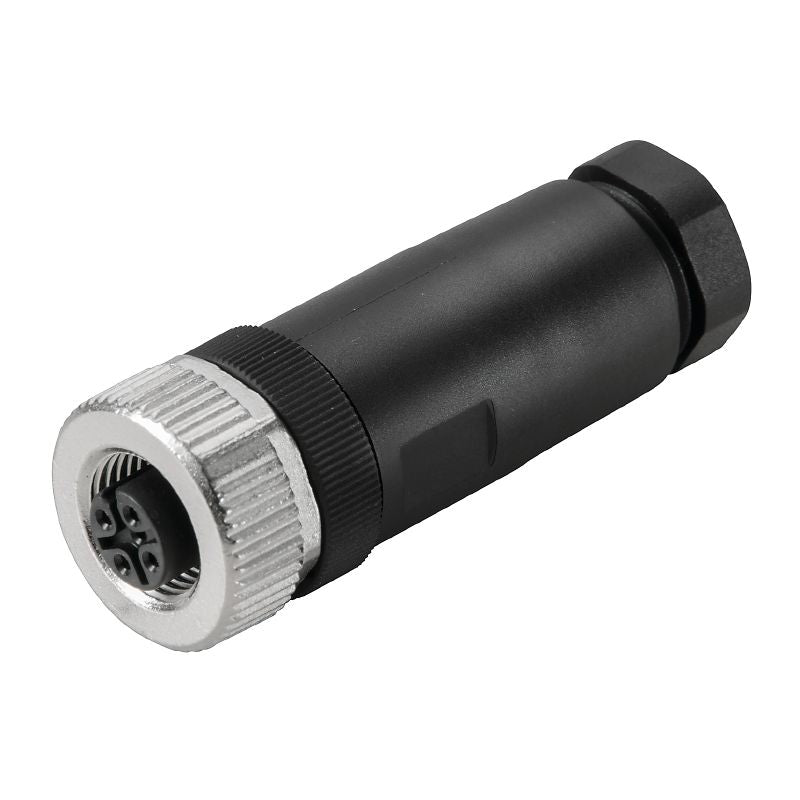

9457250000 - M12 IP67 Field Attachable Connector for 4-6mm Cables

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 field attachable connector, model SAIBGS-P-5A-4/6-M12 This connector meets RoHS standards, certified under number E307231, ensuring quality and compliance It is compatible with cable diameters from 4 mm to 6 mm and features an A-coded design for versatile connections The connector can handle conductor cross-sections between 014 mm² and 075 mm², allowing a nominal current of 4 A and operating at a voltage of 60 V.

Made from durable PA housing material, it boasts an IP67 rating, making it dust-tight and capable of withstanding temporary immersion in water With excellent insulation resistance, this product operates effectively in temperatures ranging from -40 °C to +85 °C and supports up to 50 plugging cycles, making it a reliable choice for various applications.

Features and Benefits:

•Compatible with cable diameters of 4 mm to 6 mm.

•A-coded design for specific applications.

•Constructed from durable PA material.

•Offers a high insulation resistance of 10^8 Ω.

•IP67 rating makes it suitable for challenging environments.

•Supports a wide temperature range from -40 to +85 °C.

Specifications:
