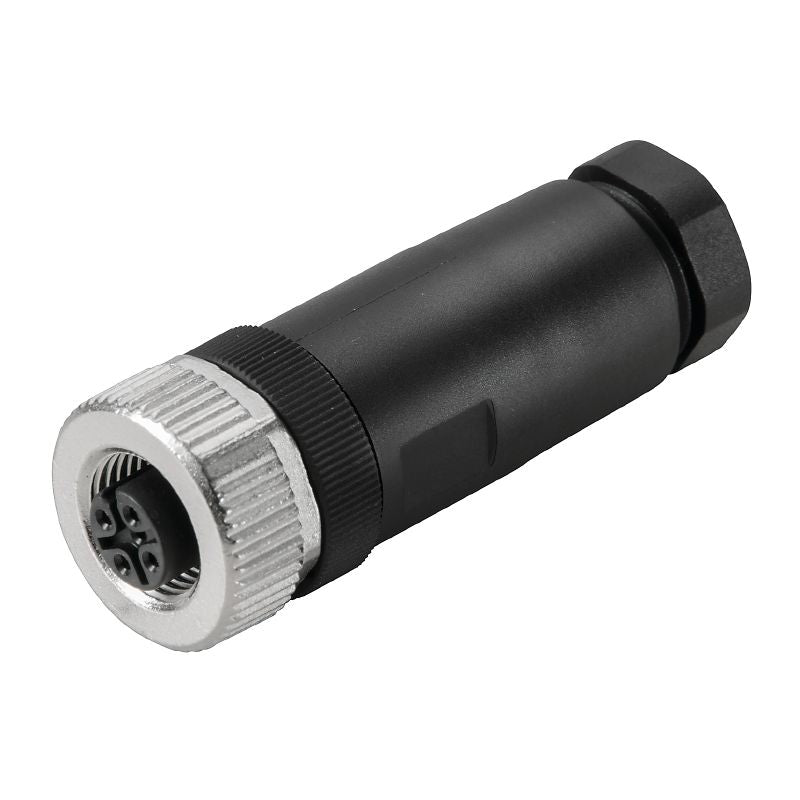

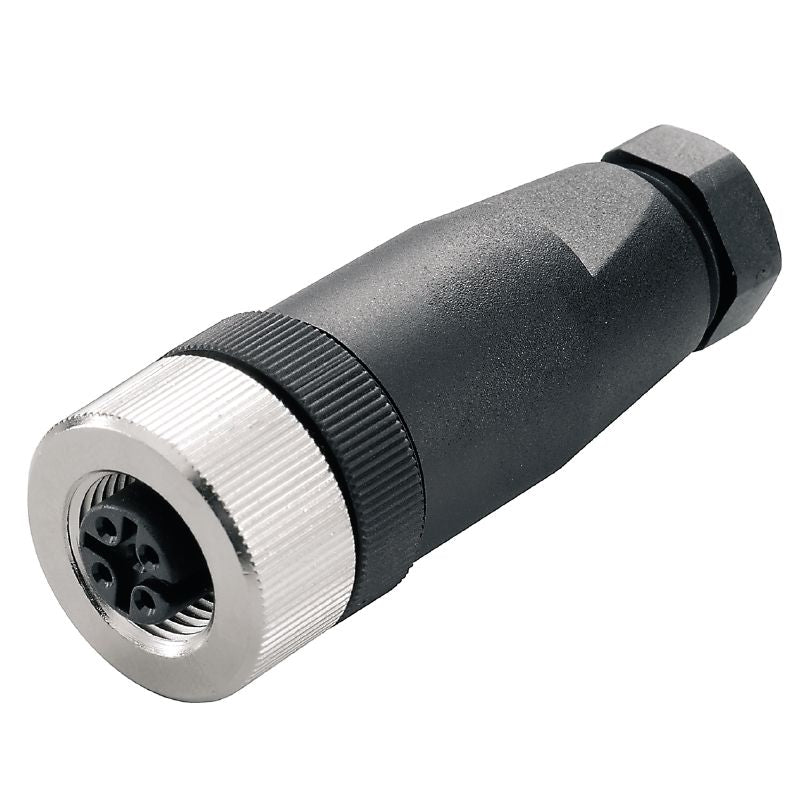

9457240000 - M12 Field Attachable Connector, IP67, A-Coded, 4-6mm Cable

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the versatility of this M12 field attachable connector, engineered for high performance and reliability Compliant with RoHS standards and UL-approved (Certificate No E307231), this product is identified by the ordering number 9457240000 Weighing in at just 23038 grams, it is built to support cable diameters between 4 mm and 6 mm, featuring A-coded wiring suitable for a variety of applications.

This connector accommodates conductor cross-sections from 014 mm² to 075 mm², ensuring robust electrical connections Its contact surface is crafted from CuSnZn for optimal conductivity, while the PA material housing provides durability and insulation resistance of 10^8 Ω Designed with female contacts, it operates efficiently with a nominal current of 4 A and nominal voltage of 250 V, supporting up to 4 poles and capable of withstanding at least 50 plugging cycles under pollution severity levels of 3.

The housing also performs well in temperature ranges from -40°C to +85°C, making it ideal for challenging environments Engineered for screw connections, this connector features an IP67 protection rating, ensuring it remains sealed against dust and water ingress Upgrade your connectivity solutions with this dependable and versatile M12 connector.

Features and Benefits:

•Compliant with RoHS exemption 6c.

•Insulation resistance of 10^8 Ω.

•Protection degree IP67.

•Temperature range of housing from -40 to +85 °C.

•Designed for a nominal current of 4 A and nominal voltage of 250 V.

•Plugging cycles greater than or equal to 50.
