9456960000 - M12 Connector Cable, 0.6m, 3-Pole PUR Sheath

9456960000 - M12 Connector Cable, 0.6m, 3-Pole PUR Sheath

SKU: SKU: 9456960000   Download PDF

Select a Variant:
  • 9456960000 - M12 Connector Cable, 0.6m, 3-Pole PUR Sheath
Qty:
Regular price Now $11.44   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $11.44 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

This connecting cable is specifically crafted for sensor and actuator use, equipped with M12 connectors Measuring 06 meters in length, it features a straight pin to straight socket configuration with three poles The cable is unshielded and does not include an LED indicator Its sheath is constructed from halogen-free PUR, ensuring safety and durability in various applications.

Features and Benefits:

    •Compliant with RoHS with exemption.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

    •Temperature range for movement is -25 to 60 °C.

    •Temperature range when stationary is -50 to 80 °C.

    •Shock and vibration proof.

Specifications:

 Cable length 0.6 m
 Diameter 3.8 mm
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 250 V
 Protection degree IP65, IP66, IP67, IP68, IP69 when screwed in
 Length of torsion 1 m
 Bending radius, min., moving 10 x cable diameter
 Bending radius, min., stationary 5 x cable diameter
 Plugging cycles ≥ 100

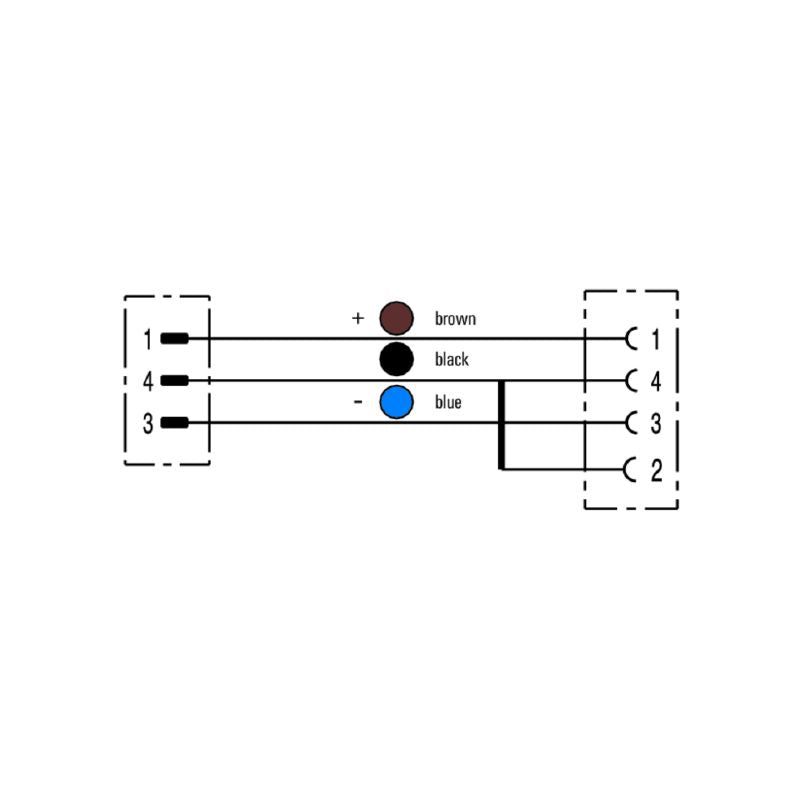

 Color coding brown, blue, black
 Insulation resistance 10^8 Ω
 Speed 3.33 m/s
 Coding A-coded
 Contact surface Gold-plated
 Connection thread M12 / M12
