9456690200 - 2m Unshielded Sensor/Actuator Cable with 3 Poles

9456690200 - 2m Unshielded Sensor/Actuator Cable with 3 Poles

SKU: SKU: 9456690200

Select a Variant:
  • 9456690200 - 2m Unshielded Sensor/Actuator Cable with 3 Poles
Qty:
Regular price Now $7.05   Web pricing policy
Regular price BEFORE   $0.00 Sale price Now $7.05 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information

Description:

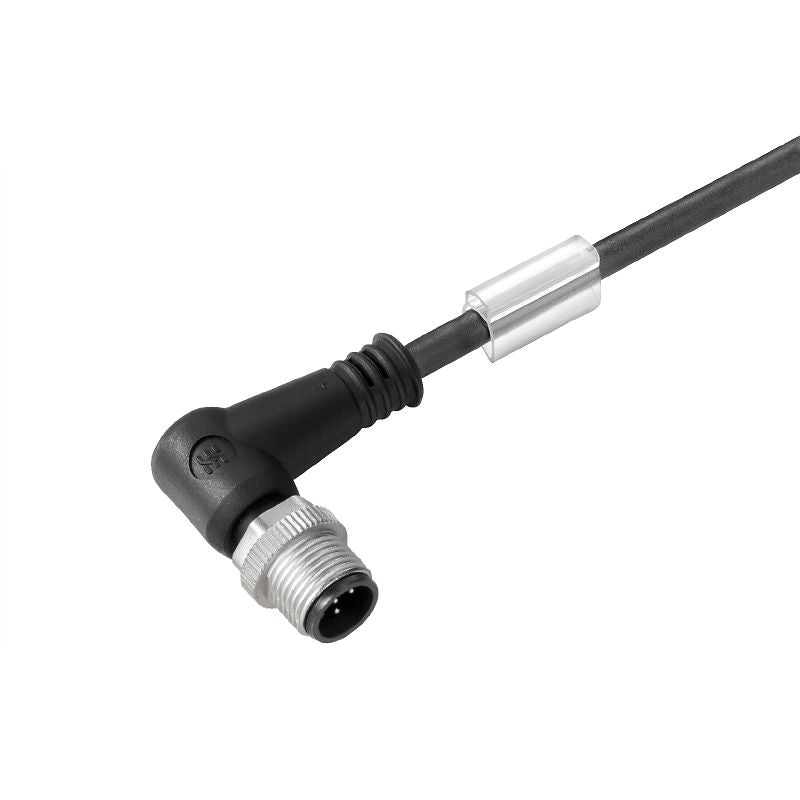

Introducing the SAIL-M12W-3-20U, a versatile sensor/actuator cable crafted for efficiency and convenience This cable features a 2-meter length and is uniquely designed with an unconnected end, showcasing a three-pole arrangement at a 90-degree angle The unshielded design makes it suitable for a wide range of applications Constructed with durable PUR sheath material, this cable is not only robust but also halogen-free, ensuring a safe option for your wiring needs.

Features and Benefits:

    •Compliant with RoHS and has no halogen content.

    •Hydrolysis and microbe resistant.

    •Configured with a M12 connection thread.

    •Gold-plated contact surfaces for enhanced conductivity.

    •Applicable in environments with temperatures ranging from -25 to 60 °C while moving and from -50 to 80 °C when stationary.

Specifications:

 Diameter 3.8 mm
 Cable length 2 m
 Core cross-section 0.34 mm²
 Nominal current 4 A
 Nominal voltage 250 V
 Protection degree IP65, IP66, IP67, IP68, IP69
 Temperature range of housing -25…+85 °C
 Bending cycles 12 Mio
 Torsion resistance 180 °/m
 Plugging cycles ≥ 100
 Weight 62.48 g
