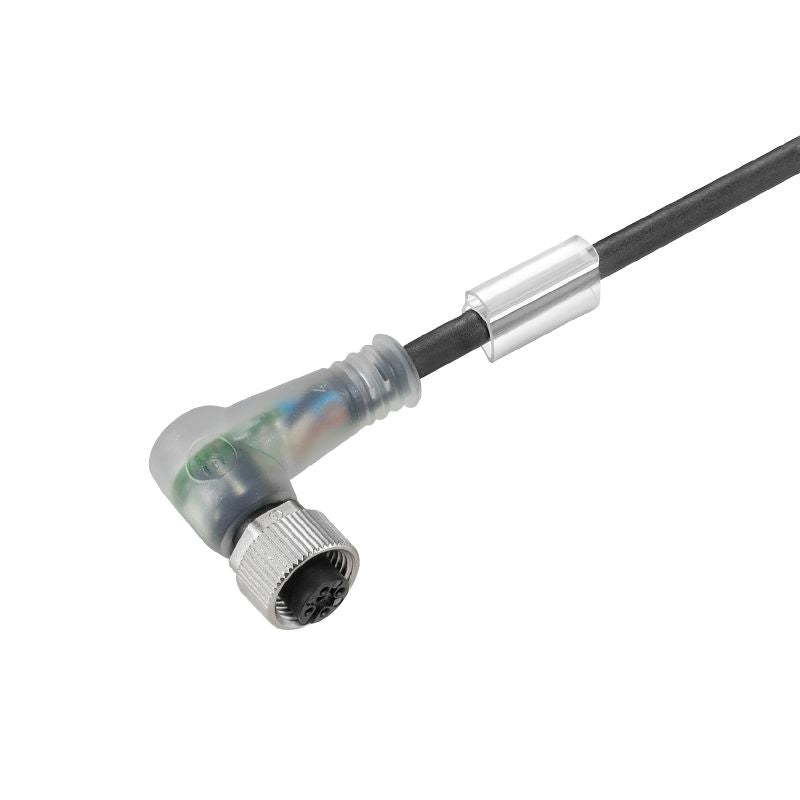

9456382000 - 20m M12 Sensor/Actuator Cable with Angled Socket

9456382000 - 20m M12 Sensor/Actuator Cable with Angled Socket

SKU: SKU: 9456382000

Variant:
  • 9456382000 - 20m M12 Sensor/Actuator Cable with Angled Socket
Regular price Now $30.82
Regular price BEFORE   $0.00 Sale price Now $30.82
Sold out
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a reliable M12 sensor/actuator line cable, crafted at a generous length of 20 meters and consisting of 4 poles This cable features a uniquely designed angled socket and is unshielded Constructed from durable PUR sheath material, it also includes LED indications for enhanced functionality Meeting RoHS standards and compliant with UL requirements as indicated by certificate number E307231, this cable ensures quality and performance for your needs.

Features and Benefits:

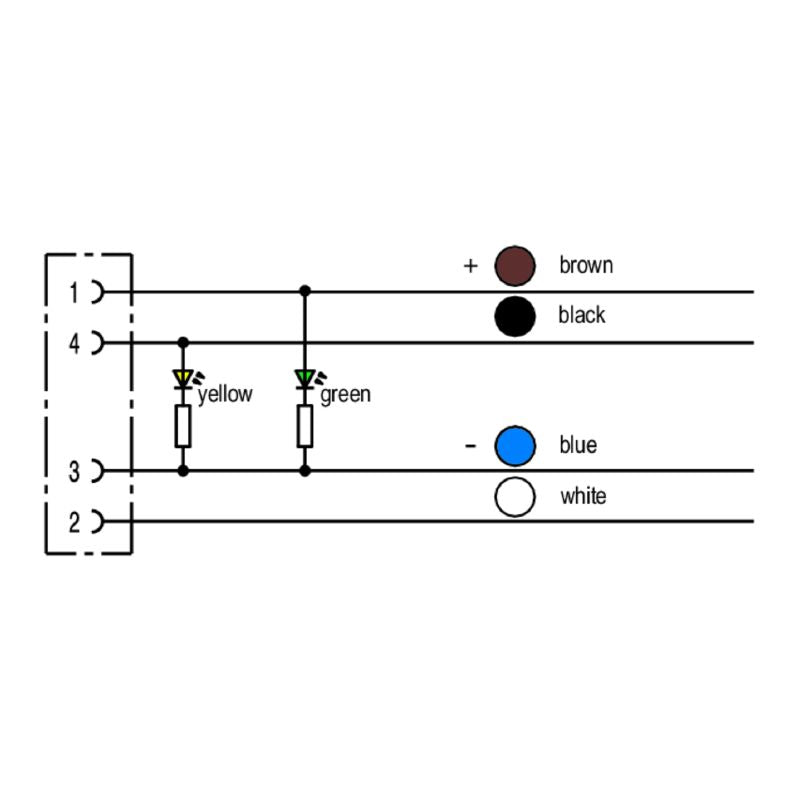

    •LED indication.

    •Halogen-free.

    •Hydrolysis and microbe resistant.

    •LABS-free.

    •Suitable for cable carriers.

Specifications:

 Cable length 20 m

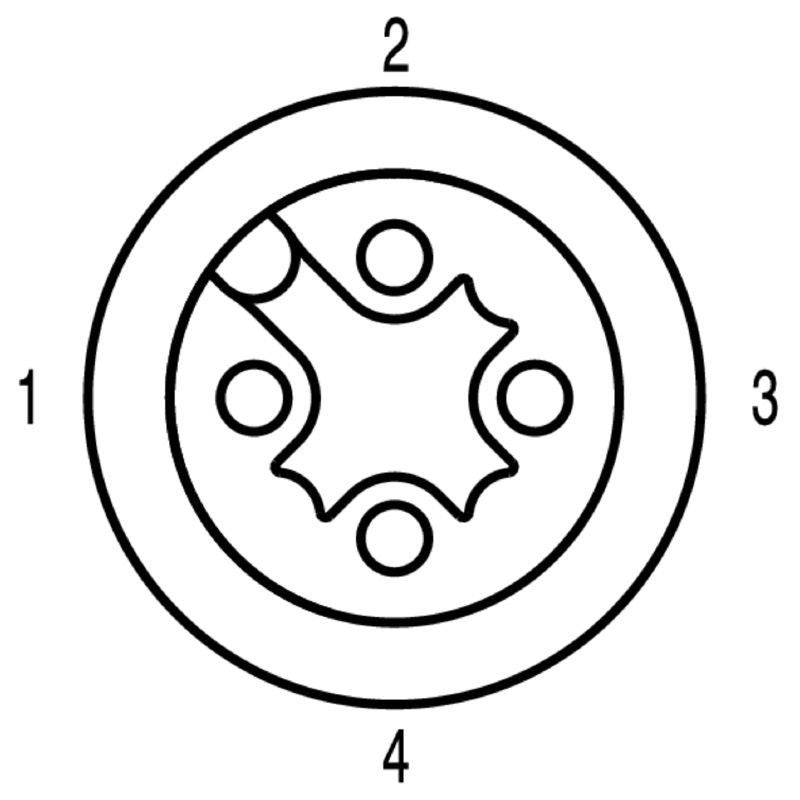

 Number of poles 4
 Core cross-section 0.34 mm²

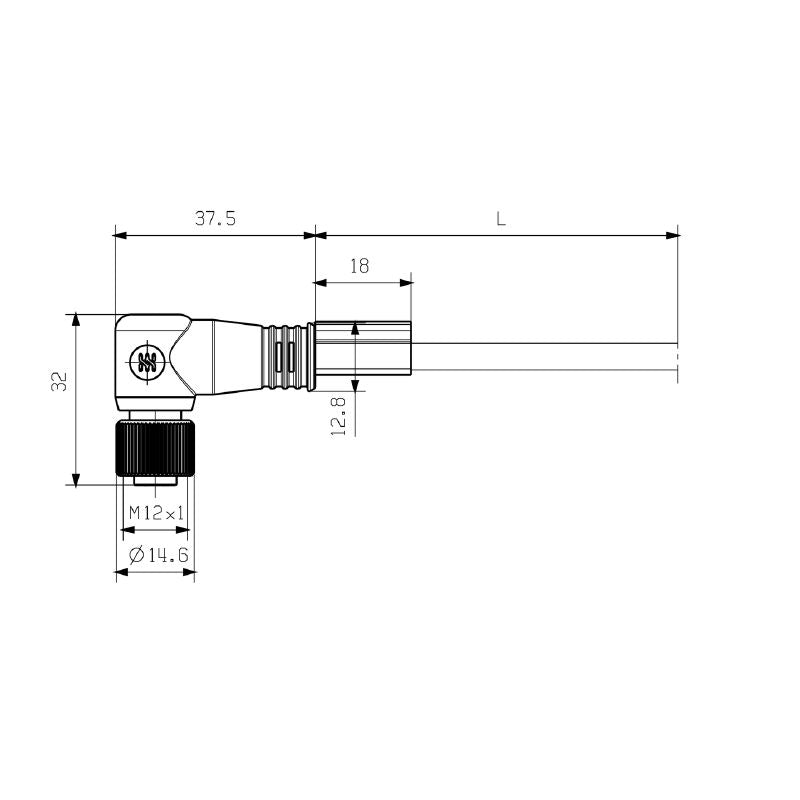

 Outside diameter 4.1 mm + 0.15 mm
 Nominal current 4 A
 Nominal voltage 24 V
 Protection degree IP67, IP68 when screwed in, IP65, IP66
 Temperature range, moving -25...60 °C
 Temperature range, stationary -50...80 °C
 Speed 3.33 m/s
 Bending cycles 12 Mio
 Torsion resistance 180 °/m
