9003750000 - Fiber-Optic Cable Stripper for 1mm Conductors, 7.5mm Length
9003750000 - Fiber-Optic Cable Stripper for 1mm Conductors, 7.5mm Length
SKU: SKU: 9003750000 Download PDF
- 9003750000 - Fiber-Optic Cable Stripper for 1mm Conductors, 7.5mm Length
- 9003750000 - Fiber-Optic Cable Stripper for 1mm Conductors, 7.5mm Length
Couldn't load pickup availability
*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color
Description:

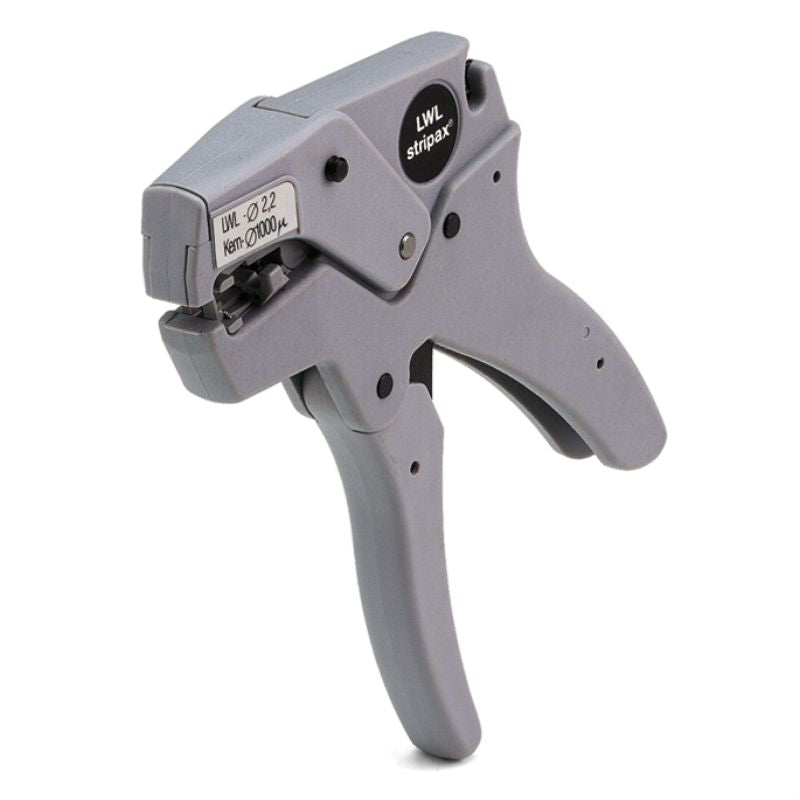

Introducing the M-D-STRIPAX LWL, an expert tool for efficiently stripping fiber-optic cables Tailored for POF conductors with a 1 mm inner conductor, this reliable device allows for a maximum stripping length of 75 mm It accommodates conductor cross-sections of up to 078 mm² and supports wire sizes reaching 18 AWG, making it a versatile addition to your toolkit Perfect for precision tasks, the M-D-STRIPAX LWL is your go-to solution for fiber-optic cable handling.
Features and Benefits:
•Designed specifically for fiber-optic cables.
•Supports POF conductors.
•Lightweight design for easy handling.
•Maximum stripping length of 7.5 mm.
•Stripping fiber-optic cable.
•Used in telecommunications and data networks.
Specifications:
| Depth | 16 mm |
| Height | 135 mm |
| Width | 82 mm |
| Colour | grey |
| Conductor cross-section, max. | 0.78 mm² |
| Max. conductor diameter | 1 mm |
| Stripping length, max. | 7.5 mm |
| Stripping range AWG, max. | 18 AWG |
| RoHS Compliance Status | Not affected |
| REACH SVHC | Lead 7439-92-1 |
| GTIN (EAN) | 4008190068042 |
