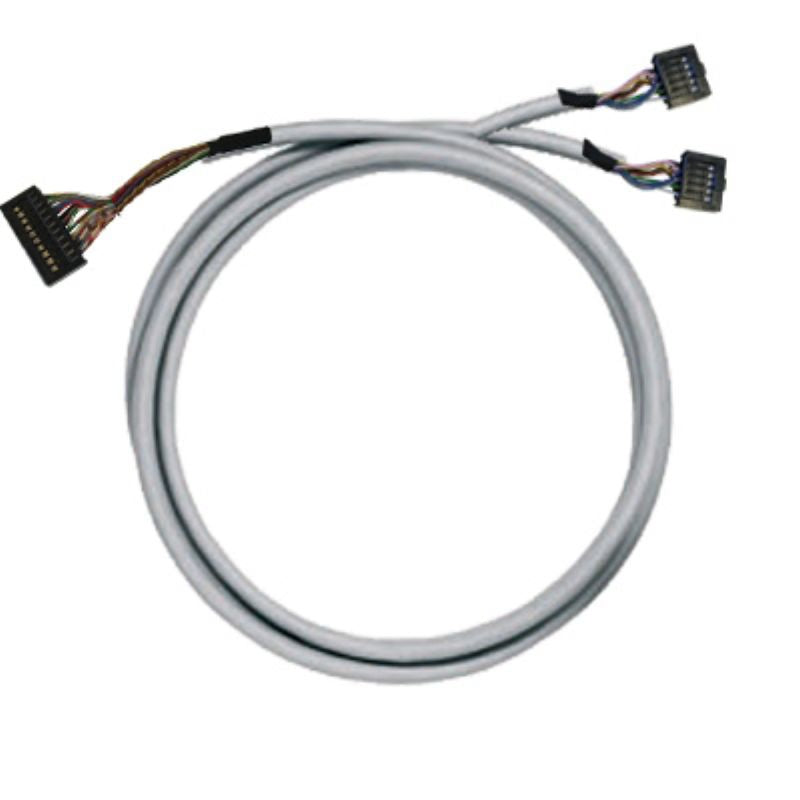

7789808005 - 0.5m PAC LiYY Cable with HE10 Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the pre-assembled PAC cable, designed to meet your digital signal transmission needs This reliable cable features a LiYY construction with a cross-sectional area of 025 mm², making it robust yet versatile With a length of 05 meters and equipped with HE10 40P connectors on both ends, it provides excellent connectivity Compliant with RoHS standards, this cable has a net weight of 108 grams and an outer diameter of 11.

7 mm It operates efficiently within a temperature range of -10 to 50 °C, while storage can be between -10 to 60 °C Capable of handling a maximum current of 3 A and rated for voltages up to 60 V DC and 25 V AC, this cable is ideal for various applications Order number: 7789808005.

Features and Benefits:

•Weight is 108 grams.

•Complies with RoHS regulations.

•Designed for digital signal transmission.

•Outer diameter is 11.7 ± 1 mm.

•High voltage test rated at 1 KV for 1 second.

•Permissible current strength of 1 A per path.

•Resistance of ≤ 80 mΩ/m.

Specifications:
