7789802025 - 2.5m LiYCY Cable with HE10 & SUB-D Connectors

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

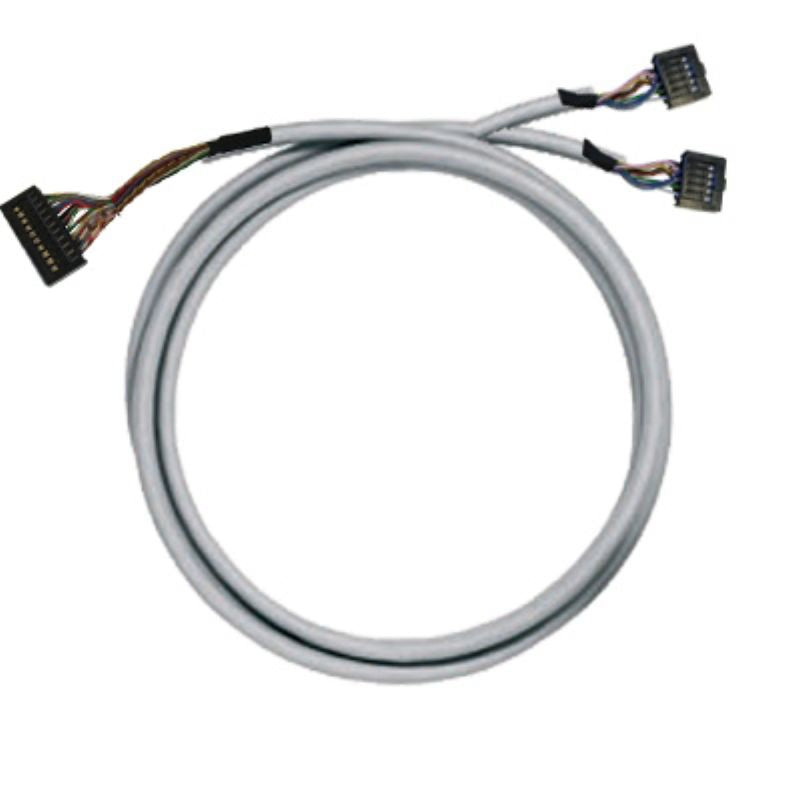

Introducing the PAC pre-assembled cable, expertly crafted from LiYCY material with a wire cross-section of 025 mm² This versatile cable is equipped with a HE10 40P connector on one end and a SUB-D FEMALE 50P connector on the other, making it ideal for digital signal transmission With an operating temperature range of -10 to 50 °C and a storage temperature capacity of -10 to 60 °C, this cable can handle diverse environments.

Measuring 25 meters in length and featuring an outer diameter of 134 mm ± 1, it combines both functionality and reliability for your connectivity needs.

Features and Benefits:

•Compliant with RoHS standards.

•Capable of withstanding a high voltage test of 1 KV for 1 second.

•Rated for voltages up to 60 V DC and 25 V AC.

•Maximum current capacity is 3 A with 1 A permissible current strength per path.

•Suitable for digital signaling.

Specifications:
