2733480015 - 1.5m PAC Pre-Assembled Cable with Dual Connectors

SKU: SKU: 2733480015 Download PDF

Variant:

2733480015 - 1.5m PAC Pre-Assembled Cable with Dual Connectors

Now $390.01

~~BEFORE $0.00~~ Now $390.01

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

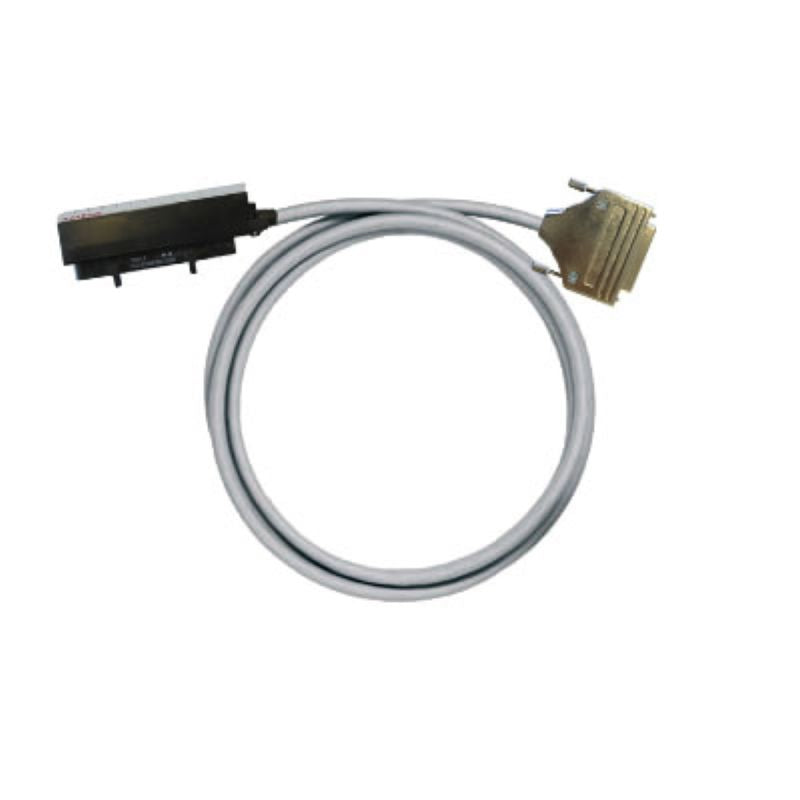

Introducing the PAC-CTLX-SD25-V10-1M5 pre-assembled cable, engineered for a range of versatile applications Measuring 15 meters in length with a wire cross-section of 025 mm², this cable offers reliable performance Constructed with durable PVC material, it complies with RoHS standards, ensuring safety and environmental responsibility It features a ROCKWELL CONTROL LOGIX 1756-TBCH 36P connector on one end and a SUB-D FEMALE 25P interface connector on the other, making it a practical choice for various connectivity needs.

The cable boasts an outer diameter of approximately 87 mm Upgrade your connectivity solutions with this essential cable.

Features and Benefits:

•Compliant with RoHS regulations.

•Features PVC as the basic material.

•Includes connectors suitable for industrious applications.

Specifications:

Storage temperature	-10...60 °C
Operating temperature	-10...50 °C
Cable length	1.5 m
Connector PLC side	ROCKWELL CONTROL LOGIX 1756-TBCH 36P
Interface connector	SUB-D FEMALE 25P
Number of poles, min.	16-pole
Outer diameter	8.7 ± 1 mm
Wire cross-section	0.25 mm²
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Permissible current strength per path, max.	1 A
Rated voltage	≤ 60 Vdc ≤ 25 Vac
Total current, max.	3 A
General ordering data	{'Order No.': '2733480015', 'GTIN (EAN)': '4032248385096', 'Qty.': '1 items'}
Environmental Product Compliance	{'RoHS Compliance Status': 'Compliant with exemption', 'RoHS Exemption': '6c', 'REACH SVHC': 'Lead 7439-92-1', 'SCIP': '4bbf2c0d-0764-4fc8-bb24-9351c28c190d'}
Classifications	{'ETIM 6.0': 'EC000237', 'ETIM 7.0': 'EC000237', 'ETIM 8.0': 'EC000237', 'ETIM 9.0': 'EC000237', 'ETIM 10.0': 'EC000237', 'ECLASS 9.0': '27-24-22-20', 'ECLASS 9.1': '27-24-22-20', 'ECLASS 10.0': '27-24-22-20', 'ECLASS 11.0': '27-24-22-20', 'ECLASS 12.0': '27-24-22-20', 'ECLASS 13.0': '27-24-22-20', 'ECLASS 14.0': '27-24-22-20', 'ECLASS 15.0': '27-24-22-20'}
