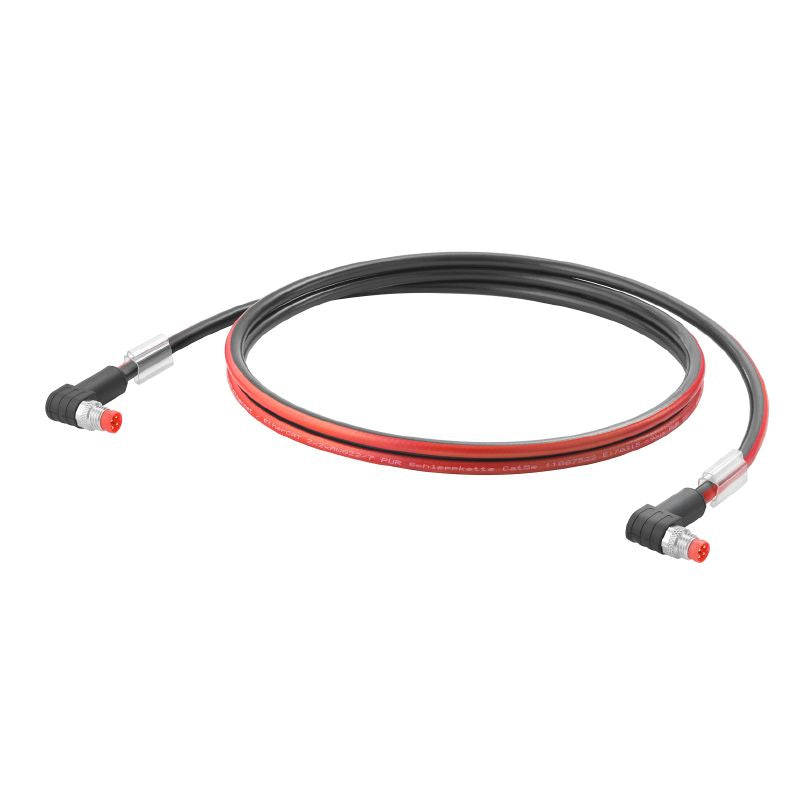

2717800050 - 5m IP67 Cat. 5e Dragline Cable with Angled Pins

2717800050 - 5m IP67 Cat. 5e Dragline Cable with Angled Pins

SKU: 2717800050   Download PDF

Select a Variant:
  • 2717800050 - 5m IP67 Cat. 5e Dragline Cable with Angled Pins
Qty:
Now $89.87   Web pricing policy
BEFORE   $0.00 Now $89.87 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

The Dragline cable is engineered with a reliable M8 P-code and boasts an IP67 rating, making it resistant to dust and water It features angled pins and adheres to the Cat 5e standard, ensuring optimal performance With a generous length of 5 meters, this cable is built for demanding environments, providing durability and dependable functionality.

Features and Benefits:

    •Compliant with RoHS standards and leads.

    •Halogen-free insulation as per IEC 60754.

    •Designed for high bending cycles, rated at 2 million.

    •IP67 protection degree for high durability.

    •Temperature operation range from -40 °C to 80 °C.

Specifications:

 Bending cycles 2 Mio
 Colour coding white, yellow, blue, orange
 Insulation Polyolefin
 Number of poles 4
 Number of wires 4
 Resistance to oils in accordance with IEC 60811:404
 Resistance to spread of flame Yes
 Sheath material PUR
 Shielded Yes
 Temperature range, moving -30...70 °C
 Temperature range, stationary -40...80 °C
 Test voltage: wire-wire-shield 1 kV DC, 1 min
 Protection degree IP67
 Plug, left M8, P-coded, IP67, male contact, angled 90°, plug, Plastic, shielded
 Plug, right M8, P-coded, IP67, male contact, angled 90°, plug, Plastic, shielded
