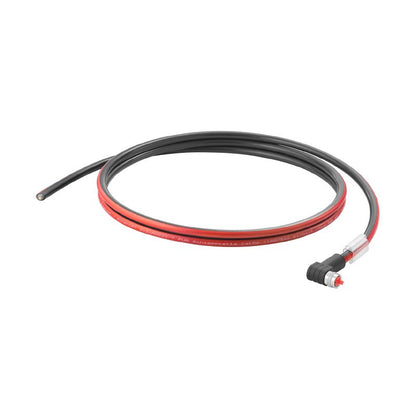

2717760075 - 7.5m PUR Dragline Cable with M8 IP67 Angled Socket

2717760075 - 7.5m PUR Dragline Cable with M8 IP67 Angled Socket

SKU: 2717760075 Download PDF

Variant:
  • 2717760075 - 7.5m PUR Dragline Cable with M8 IP67 Angled Socket
Now $78.04
BEFORE   $0.00 Now $78.04
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the Dragline cable, engineered for versatility with its M8 P-code angled socket, offering robust IP67 protection Compliant with Cat 5e standards, this 75-meter cable is built from durable PUR material It comes with assurance of RoHS compliance and lead content that meets REACH SVHC regulations Weighing in at 466 grams, this cable is tailored for a variety of general-purpose applications.

Features and Benefits:

    •Bending cycles up to 2 million.

    •Halogen-free insulation according to IEC 60754.

    •IP67 protection degree.

    •Resistance to oils as per IEC 60811:404.

    •Shielded construction to reduce interference.

Specifications:

 Dimensions 7.5 m
 Operating temperature -40 °C...80 °C
 Number of poles 4
 Number of wires 4
 Sheath material PUR
 Temperature range, moving -30...70 °C
 Temperature range, stationary -40...80 °C
 Test voltage 1 kV DC, 1 min
 Resistance to spread of flame Yes
