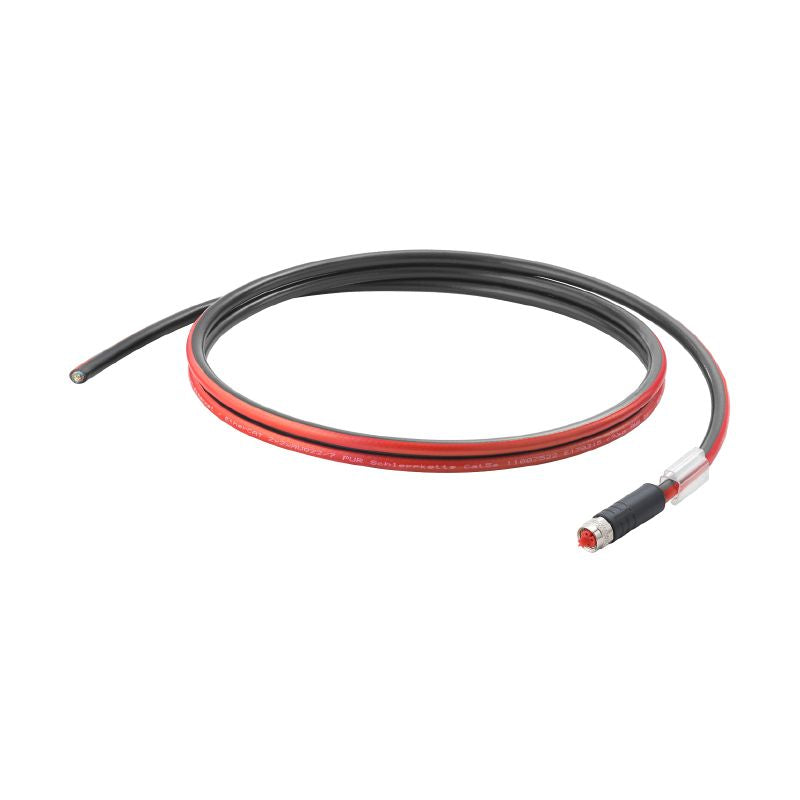

2717740015 - 1.5m PUR M8 P-Code Dragline Cable with IP67 Straight Socket

2717740015 - 1.5m PUR M8 P-Code Dragline Cable with IP67 Straight Socket

SKU: 2717740015 Download PDF

Variant:
  • 2717740015 - 1.5m PUR M8 P-Code Dragline Cable with IP67 Straight Socket
Now $38.32
BEFORE   $0.00 Now $38.32
Sold out
Web pricing policyShipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000.* Only on standard purchases of cables and wires.
View full details
Product Information Resources Reviews
Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M8 P-code dragline cable, featuring a straight socket with an IP67 rating and designed to meet Cat 5e standards This robust cable measures 15 meters in length and is constructed from high-quality PUR material It adheres to RoHS guidelines, ensuring compliance with various environmental regulations for a sustainable choice.

Features and Benefits:

    •Halogen-free according to IEC 60754.

    •Bending cycles rated at 2 million.

    •Resistance to oils in accordance with IEC 60811:404.

    •Shielded for enhanced performance.

    •Operating temperature range from -40 °C to 80 °C.

Specifications:

 Number of poles 4
 Number of wires 4
 Protection degree IP67
 Insulation Polyolefin
 Sheath material PUR
 Temperature range, moving -30...70 °C
 Temperature range, stationary -40...80 °C
 Test voltage: wire-wire-shield 1 kV DC, 1 min
 Resistance to spread of flame Yes
