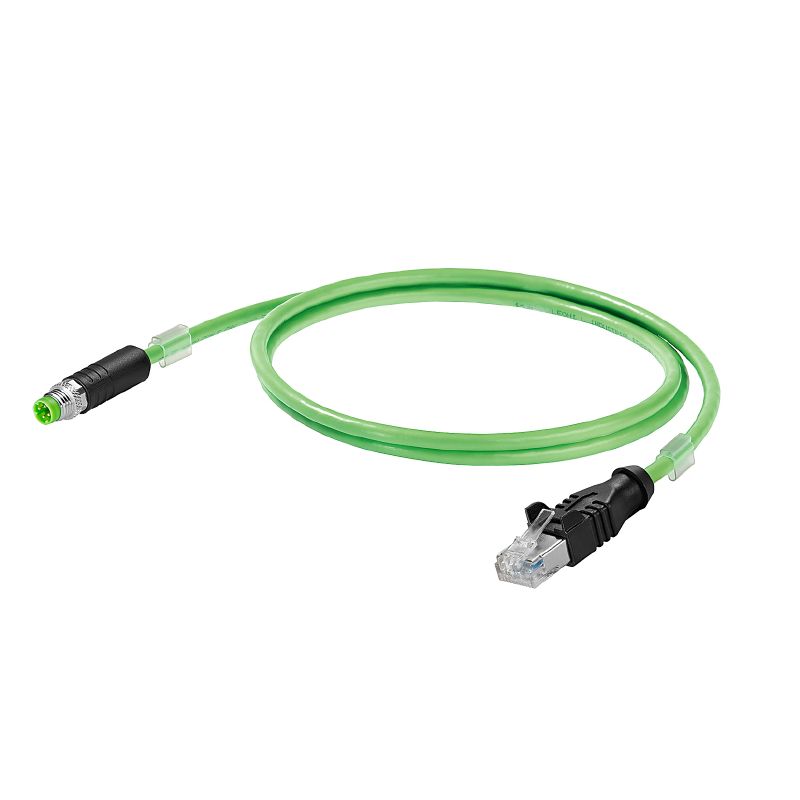

2706250200 - 20m PROFINET Dragline Cable, M8 D-Code & RJ45 Connectors

2706250200 - 20m PROFINET Dragline Cable, M8 D-Code & RJ45 Connectors

SKU: 2706250200   Download PDF

Select a Variant:
  • 2706250200 - 20m PROFINET Dragline Cable, M8 D-Code & RJ45 Connectors
Qty:
Now $146.57   Web pricing policy
BEFORE   $0.00 Now $146.57 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

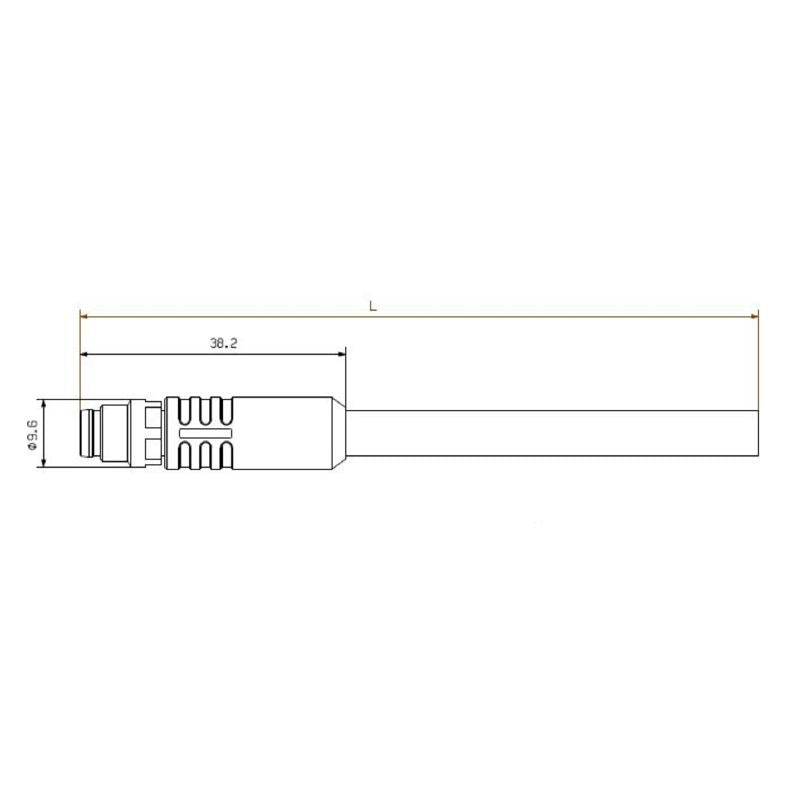

Experience reliable connectivity with this specialized dragline cable, perfect for PROFINET applications One end is equipped with an M8 D-code connector, offering an IP67 rating for maximum protection against dust and water, while the other features an RJ45 connector rated at IP20 This cable meets both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards, ensuring superior performance With a generous length of 20 meters and crafted from durable PUR material, it's built to withstand a variety of environmental conditions, making it an essential choice for your connectivity needs.

Features and Benefits:

    •RoHS compliant.

    •Halogen-free.

    •SF/UTP shielding to reduce interference.

    •Very good abrasion resistance.

    •Suitable for a wide range of operating temperatures.

    •UV-resistant and silicone-free.

Specifications:

 Operating voltage (UL rating) 600 V
 Capacity at 1 kHz 52 nF/km
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Delay skew 40 ns/100m
 Loop resistance 120 Ω/km
 Signal propagation time 5.3 ns/m
 Speed 180 m/min
 Bending cycles 3 Mio
 Pulling force ≤ 150 N
 Min. bending radius, once only 5 x cable diameter
 Min. bending radius, repetitive 7.5 x cable diameter
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Number of wires 4
 Filler As central element
 Insulation cross-section 1.5 mm
 Insulation PE
 Material sheath PUR

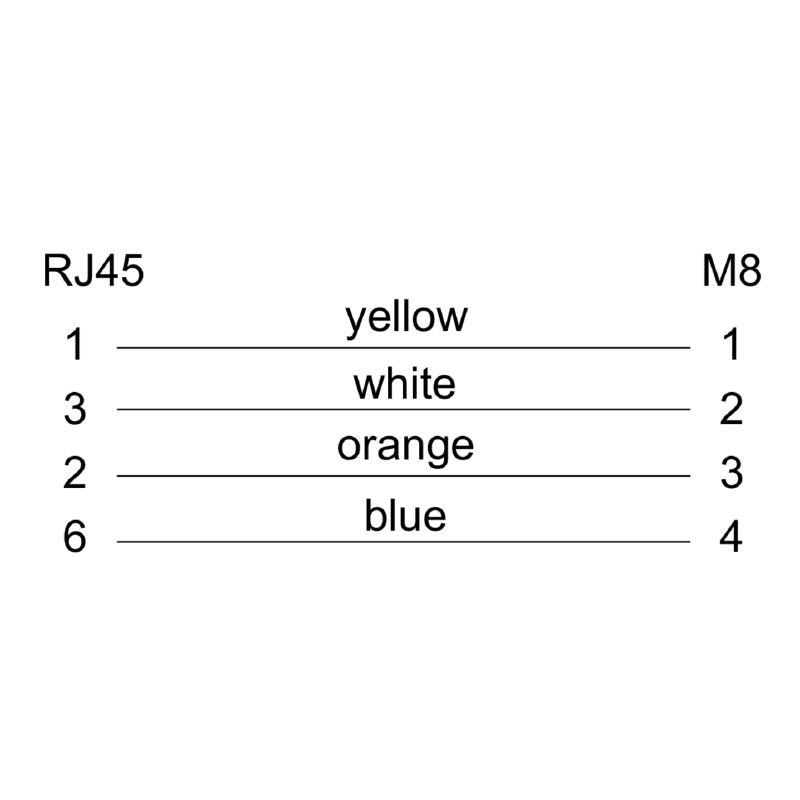

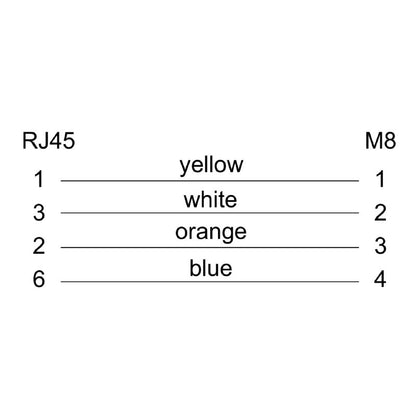

 Colour sequence or wires - wire pairs white, yellow, blue, orange
 Standard designations 2YH(ST)C11Y 2x2x0,75/1,5-100 LI VZN GN FRNC
 Wire material Stranded tin-plated copper wire
 Standard, insulating material DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
 Standard, shielding material DIN EN 13602 Cu-ETP-A..B
 Standard, wire material DIN EN 13602 Cu-ETP-A
 Test voltage: wire-wire-shield 2000 V eff, 50 Hz, 1 min
