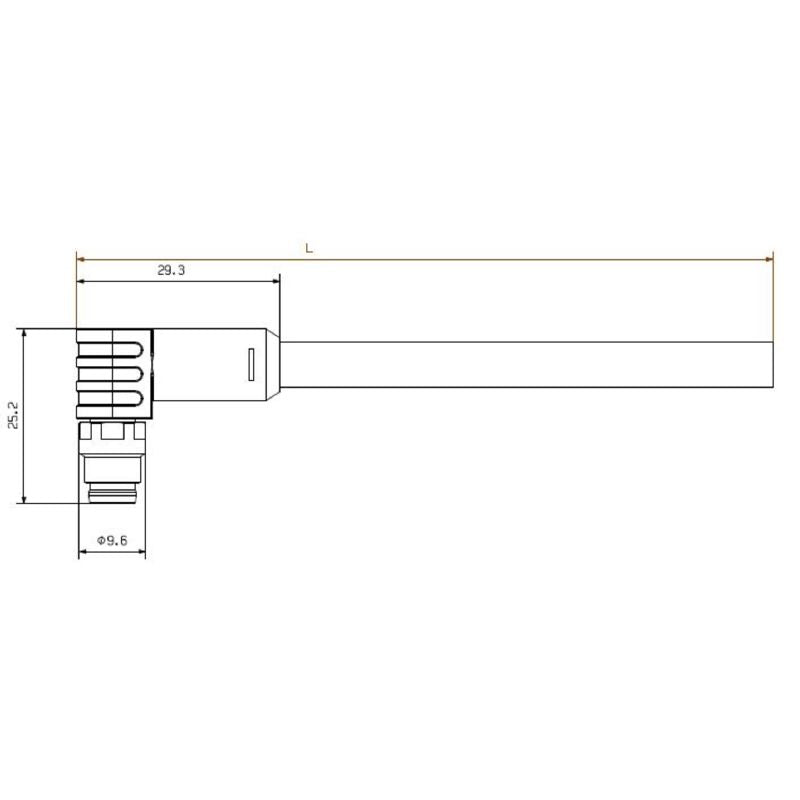

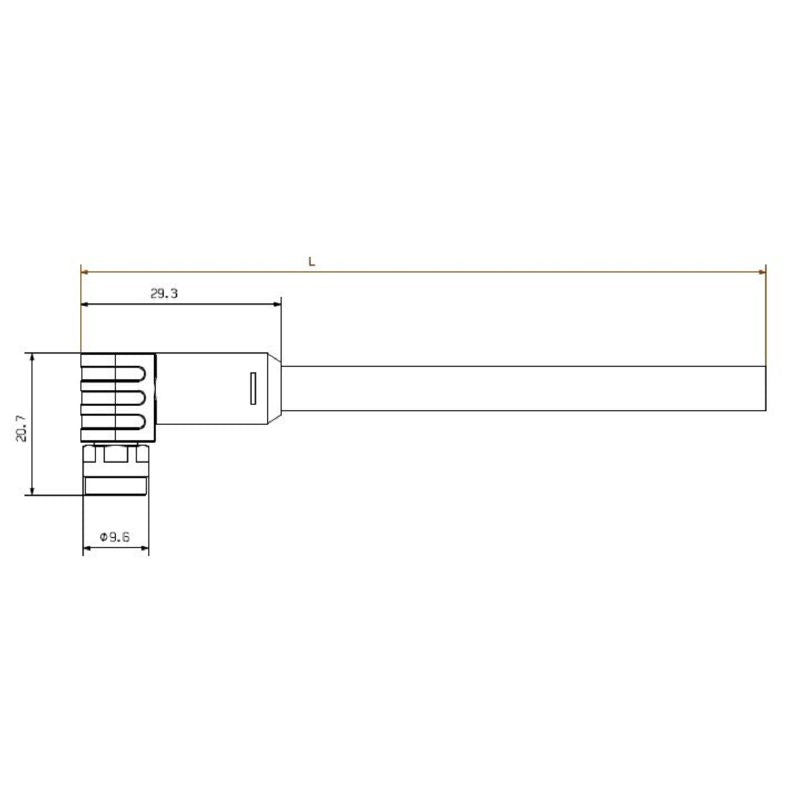

2706230075 - 7.5m PROFINET Dragline Cable, Cat.5, IP67, PUR Material

SKU: SKU: 2706230075 Download PDF

Variant:

2706230075 - 7.5m PROFINET Dragline Cable, Cat.5, IP67, PUR Material

Now $99.01

~~BEFORE $0.00~~ Now $99.01

Sold out

Web pricing policy Shipping calculated at checkout.

IN STOCK

Shipping Available

Free shipping on orders above $1000.* Only on standard purchases of cables and wires.

View full details

Product Information Resources Reviews

Product Information

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Enhance your industrial connectivity with this specialized dragline cable, optimized for PROFINET applications Equipped with M8 D-code connectors that meet IP67 waterproof standards, this cable guarantees reliability in demanding environments It adheres to the specifications of Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B), ensuring excellent performance and compatibility Made from durable PUR material, this 7.

5-meter cable is engineered for longevity and efficiency in your networking needs.

Features and Benefits:

•Very good abrasion resistance.

•Highly bendable with specific minimum bending radius.

•Fire propagation is not present.

•Halogen-free as per IEC 60754-2.

•UV-resistant.

•Silicone-free.

•Resistant to oils.

•Plug and play connections with both male and female connectors.

•Compatibility with various historical and modern standards.

Specifications:

Storage temperature	-50 °C...70 °C
Operating temperature	-40 °C...70 °C
Installation temperature	-20 °C...60 °C
Sheath diameter, max.	6.7 mm
Sheath diameter, min.	6.3 mm
Number of wires	4
Wire core insulation thickness	0.38 mm
Diameter of inner sheathing	3.9 mm
Material sheath	PUR
Cross-section	4*AWG 22/7 - 0.32 mm²
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Loop resistance	120 Ω/km
Operating voltage (UL rating)	600 V
Bending cycles	3 Mio
Speed	180 m/min
Resistance differential	3%
Signal propagation time	5.3 ns/m
Test voltage: wire-wire-shield	2000 V eff, 50 Hz, 1 min
Complete shielding	Aluminium foil
Shielding braid made from copper wiring
Environmental Product Compliance	{'RoHS Compliance Status': 'Compliant with exemption', 'RoHS Exemption': '6c', 'REACH SVHC': 'Lead 7439-92-1'}
