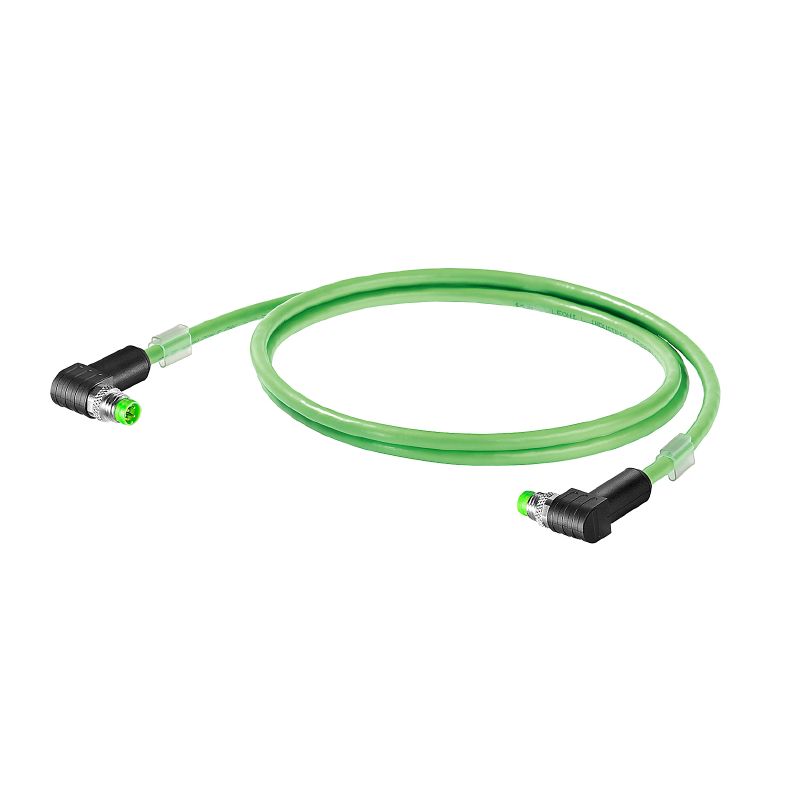

2706220075 - 7.5m M8 D-coded Dragline Cable for PROFINET - IP67 Rated

2706220075 - 7.5m M8 D-coded Dragline Cable for PROFINET - IP67 Rated

SKU: 2706220075   Download PDF

Select a Variant:
  • 2706220075 - 7.5m M8 D-coded Dragline Cable for PROFINET - IP67 Rated
Qty:
Now $99.01   Web pricing policy
BEFORE   $0.00 Now $99.01 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing a specialized dragline cable tailor-made for PROFINET applications, featuring M8 D-coded connectors that come with an angled design and boast an IP67 rating for superior protection This robust cable meets both Cat5 and Cat5e standards and is crafted from high-quality PUR material, ensuring durability and flexibility With a generous length of 75 meters, it’s an excellent choice for a variety of connectivity needs.

Features and Benefits:

    •Compliant with RoHS, allowing for environmentally friendly usage..

    •Very good abrasion resistance ensures durability..

    •Halogen-free construction following IEC 60754-2 specifications..

    •UV-resistant design for outdoor applications..

Specifications:

 Length 7.5 m
 Category Cat.5 (ISO/IEC 11801) / Cat.5e (TIA T568-B)
 Shielding SF/UTP
 Diameter of inner sheathing 3.9 mm
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Operating voltage 600 V
 Loop resistance 120 Ω/km
 Signal propagation time 5.3 ns/m
 Capacity at 1 kHz 52 nF/km
 Test voltage 2000 V, 50 Hz, 1 min
 Pulling force ≤ 150 N
 Min. bending radius 5 x cable diameter
