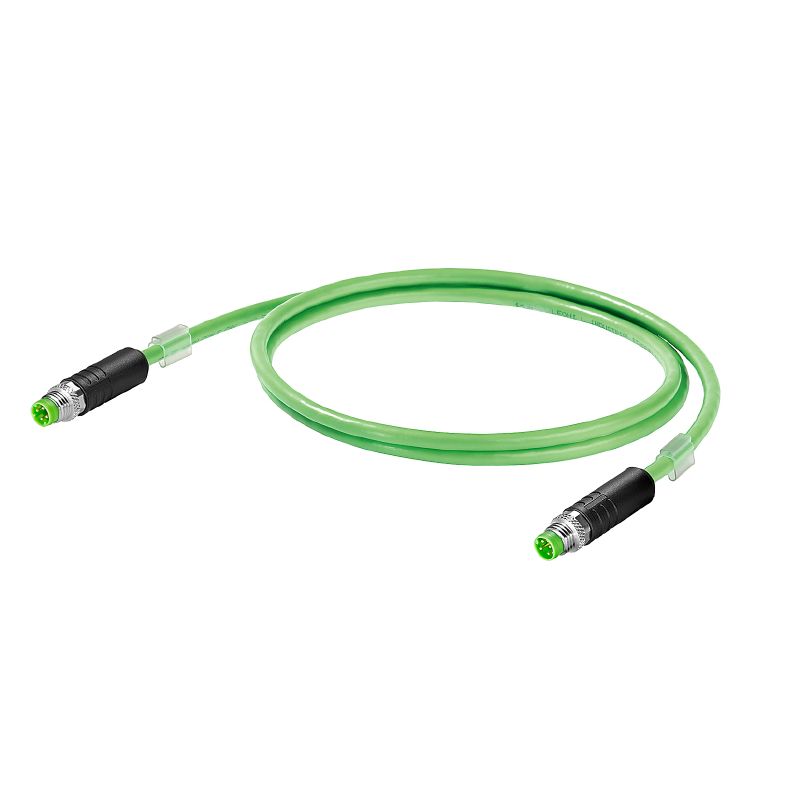

2706200300 - 30m PROFINET Dragline Cable with M8 D-Code Connectors

2706200300 - 30m PROFINET Dragline Cable with M8 D-Code Connectors

SKU: 2706200300   Download PDF

Select a Variant:
  • 2706200300 - 30m PROFINET Dragline Cable with M8 D-Code Connectors
Qty:
Now $206.57   Web pricing policy
BEFORE   $0.00 Now $206.57 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

This dragline cable is specifically engineered for PROFINET uses, equipped with M8 D-code connectors It adheres to Cat5 specifications outlined by ISO/IEC 11801 and TIA T568-B standards With a length of 30 meters, it is made from durable PUR material, ensuring reliable performance in demanding environments.

Features and Benefits:

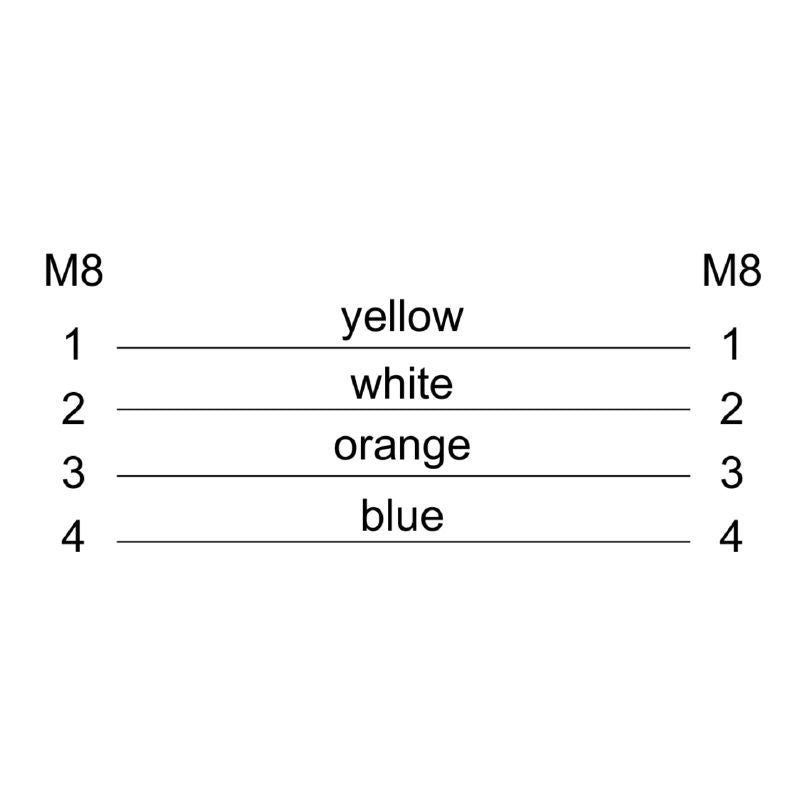

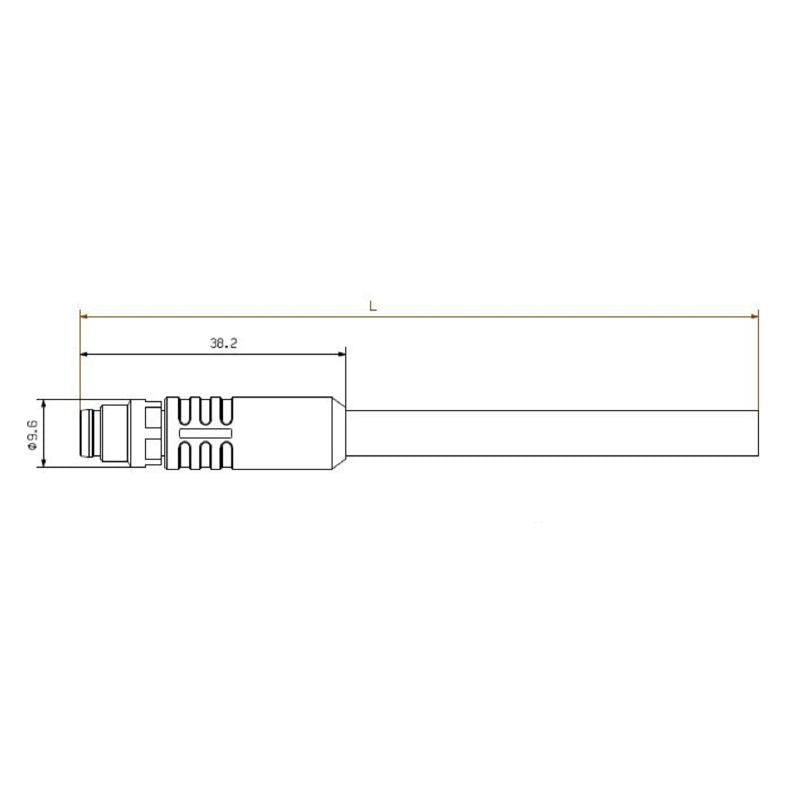

    •M8 D-code connectors that are straight and shielded.

    •Durable PUR outer sheath.

    •Designed for high performance under various environmental conditions.

    •Excellent bending cycles up to 3 million.

Specifications:

 Length 30 m
 Operating voltage (UL rating) 600 V
 Standard, insulating material DIN EN 50290-2-23 (VDE 0819) Table 2/A (HD 624.3)
 Standard, wire material DIN EN 13602 Cu-ETP-A
 Number of wires 4
 Cross-section 4*AWG 22/7 - 0.32 mm²
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Delay skew 40 ns/100m
 Resistance differential 3 %
 Capacity at 1 kHz 52 nF/km
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Test voltage: wire-wire-shield 2000 V
 Min. bending radius, once only 5 x cable diameter
 Min. bending radius, repetitive 7.5 x cable diameter
 Speed 180 m/min
 Pulling force ≤ 150 N
 Fire propagation No
 Resistance to oils in accordance with IEC 60811-2-1
