2706150200 - 20m PROFINET Dragline Cable, M8 D-code, IP67, PUR Material

2706150200 - 20m PROFINET Dragline Cable, M8 D-code, IP67, PUR Material

SKU: 2706150200   Download PDF

Select a Variant:
  • 2706150200 - 20m PROFINET Dragline Cable, M8 D-code, IP67, PUR Material
Qty:
Now $129.08   Web pricing policy
BEFORE   $0.00 Now $129.08 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

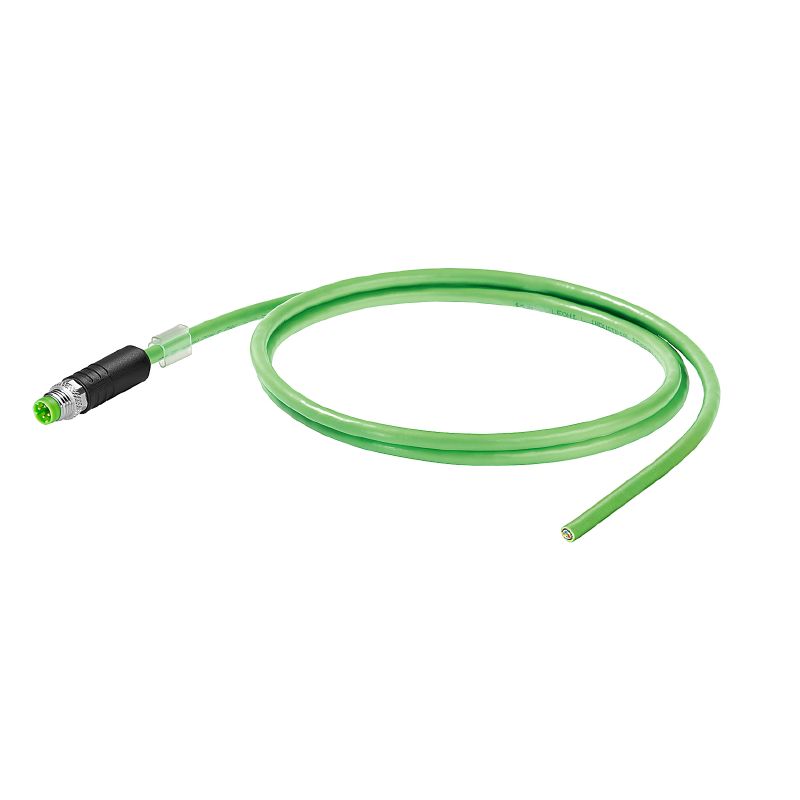

Introducing our specialized Dragline cable for PROFINET applications, featuring M8 D-code connectors and a robust IP67 straight pin setup Measuring a generous 20 meters in length, this cable is built from high-quality PUR material and adheres to both Cat5 (ISO/IEC 11801) and Cat5e (TIA T568-B) standards, ensuring reliable performance for your networking needs.

Features and Benefits:

    •Compliant with ROHS.

    •Very good abrasion resistance.

    •Halogen-free according to IEC 60754-2.

    •UV-resistant.

    •Silicone-free.

    •Free conductor end on the right side.

Specifications:

 Length 20 m
 Diameter of inner sheathing 3.9 mm
 Sheath diameter, max. 6.7 mm
 Sheath diameter, min. 6.3 mm
 Operating voltage (UL rating) 600 V
 Loop resistance 120 Ω/km
 Bending cycles 3 Mio
 Min. bending radius, once only 5 x cable diameter
 Min. bending radius, repetitive 7.5 x cable diameter
 Signal propagation time 5.3 ns/m
 Capacity at 1 kHz 52 nF/km
 Characteristic impedance 100 ± 15 Ω at 1–100 MHz
 Transfer impedance 20 mΩ/m at 10 MHz
 Testing voltage: wire-wire-shield 2000 V, 50 Hz, 1 min
 Temperature (Storage) -50 °C...70 °C
 Temperature (Operating) -40 °C...70 °C
 Temperature (Installation) -20 °C...60 °C
