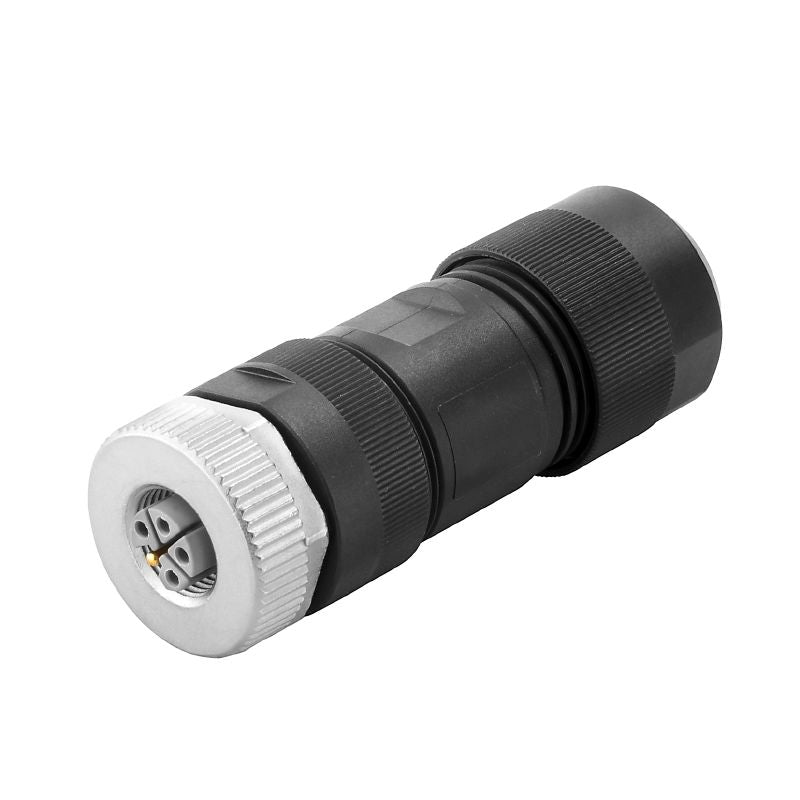

2703520000 - M12 Field Attachable Connector for 8-13mm Cables

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAIBGS-P-5L-8/13-M12, an innovative M12 connector crafted for adaptable applications This connector meets RoHS standards and holds a UL certification (File Number E307231) It accommodates cables with diameters ranging from 8 mm to 13 mm, making it versatile for various uses The L-coded design allows connections with a maximum cross-sectional area of 25 mm² Constructed with CuZn material and gold plating, it ensures superior conductivity.

Specifically designed for female connections, it supports a nominal current of 16 A and a nominal voltage of 63 V, guaranteeing dependable performance for your electrical needs.

Features and Benefits:

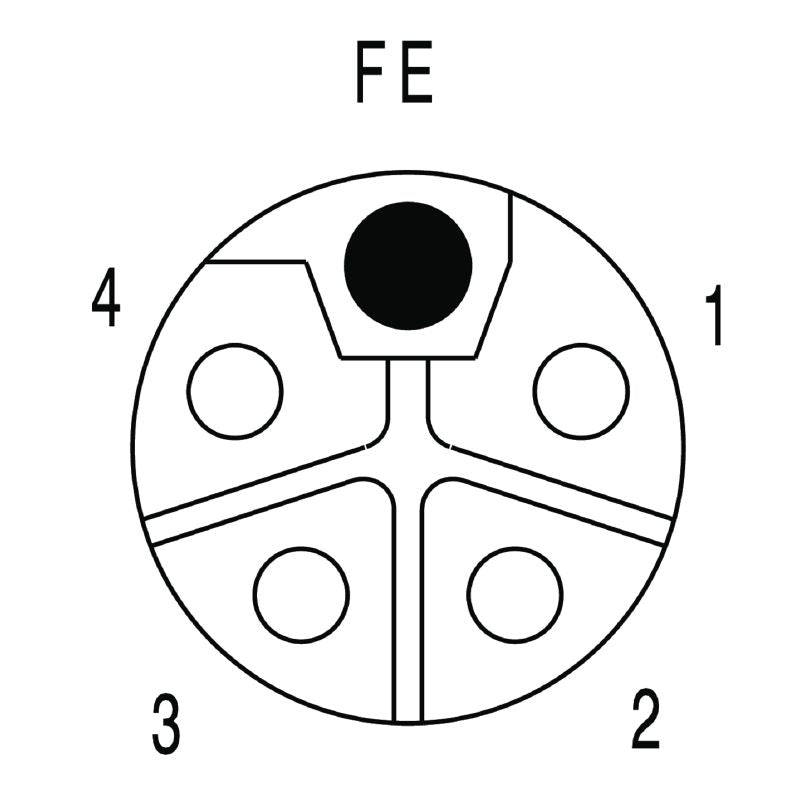

•5 poles for enhanced connectivity.

•Plugging cycles rated for a minimum of 100.

•High protection degree rated at IP67 for dust and water resistance.

•Wide temperature range from -40 to +85 °C.

•Screw connection type for secure fitting.

•Made from durable housing material PA.

Specifications:
