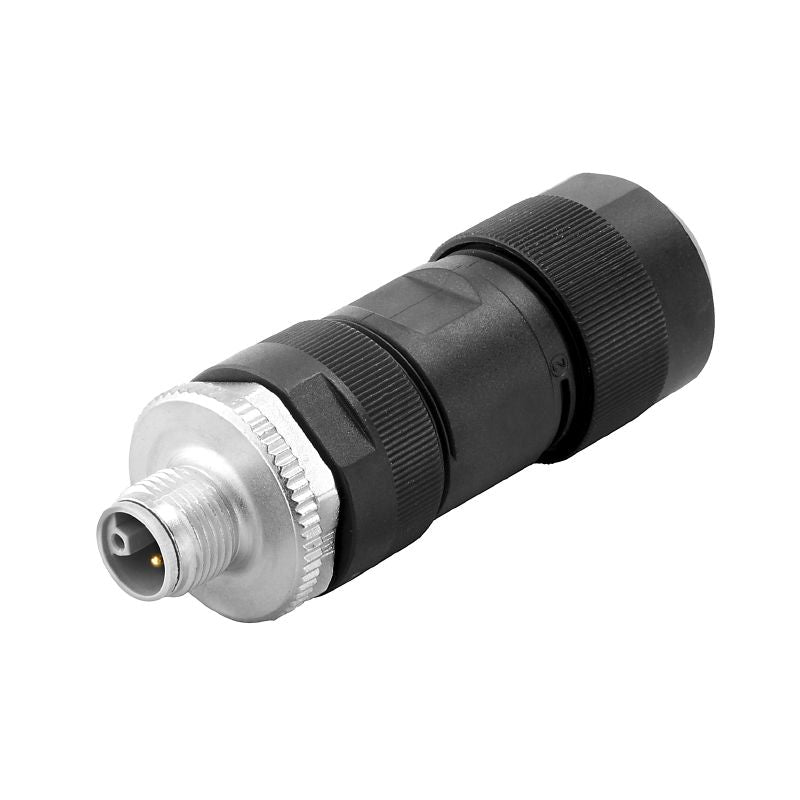

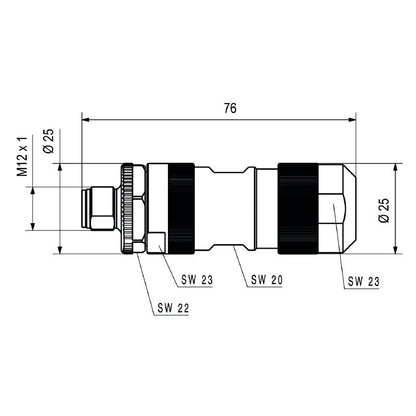

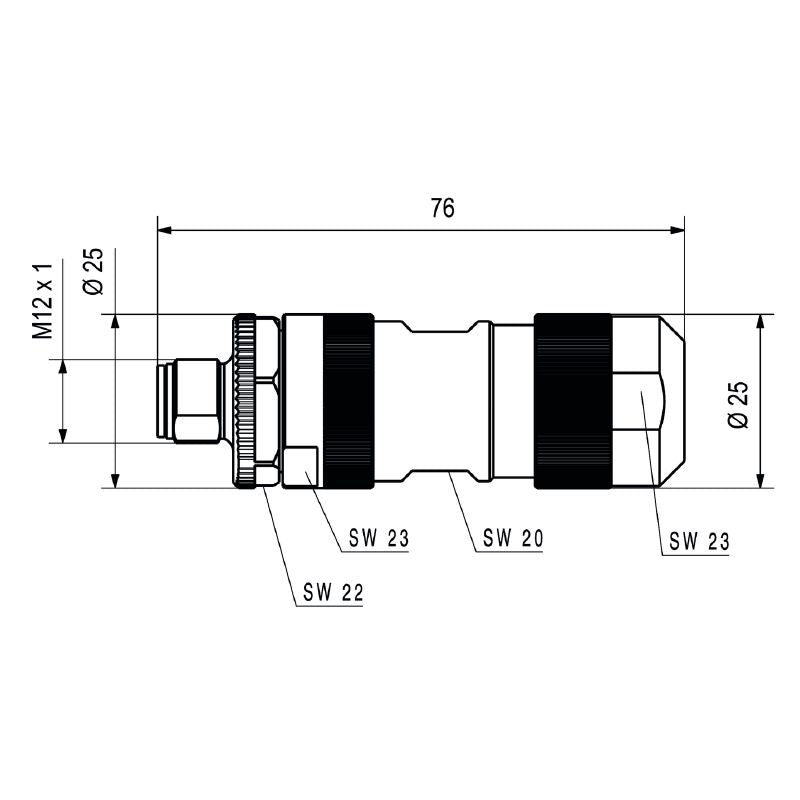

2703510000 - M12 Field Attachable Connector, IP67, 8-13 mm Cable Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing our M12-compatible field attachable connector, designed with precision and efficiency in mind Weighing in at just 4289 grams, this connector boasts a clever design for customizable plug-in installations, accommodating cable diameters between 8 mm and 13 mm It features a maximum connection cross-section of 25 mm² and is equipped with male contacts made from gold-plated CuZn for reliable performance.

With a nominal current capacity of up to 16 A and operating at 63 V, this connector supports a robust 5-pole configuration and is built to withstand a minimum of 100 plugging cycles Its IP67 rating ensures it remains resilient in challenging environments, while the sturdy PA housing offers added durability Ideal for versatile applications, this connector utilizes a screw connection and operates efficiently within a temperature range of -40 to +85 °C, making it a dependable choice for your needs.

Compliant with RoHS and accompanied by environmental certification, it's a sustainable solution for modern connectivity.

Features and Benefits:

•RoHS compliant with exemption.

•Environmental Product Compliance.

•Maximum cable diameter of 13 mm.

•Minimum cable diameter of 8 mm.

•L-coded connections.

•IP67 protection degree.

•Compatible with finely stranded wires up to 2.5 mm².

•Durability of at least 100 plugging cycles.
