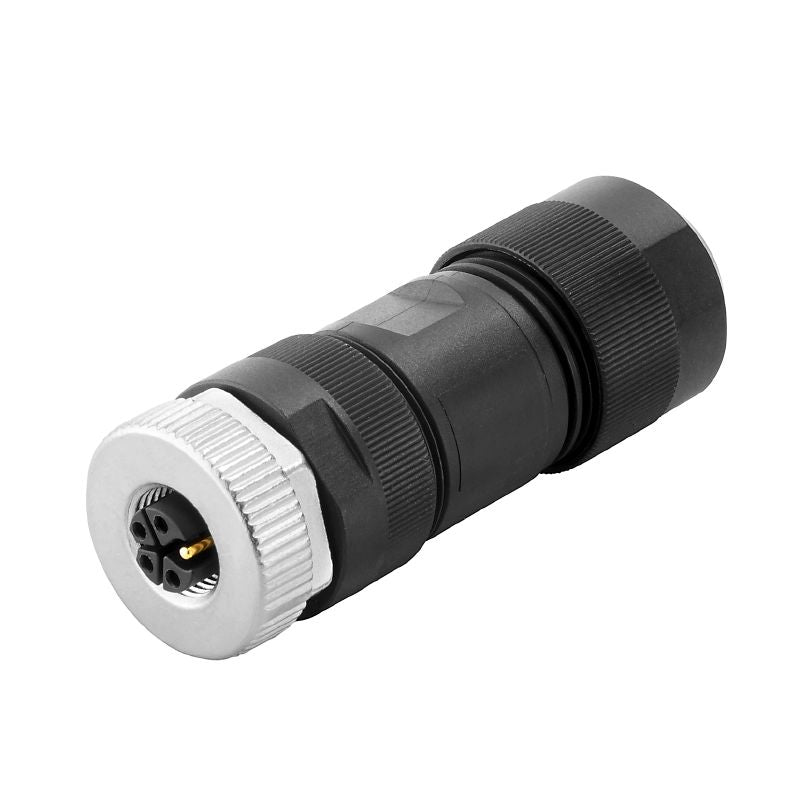

2703500000 - M12 Field Attachable Connector, IP67, 8-13mm Cable Range

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

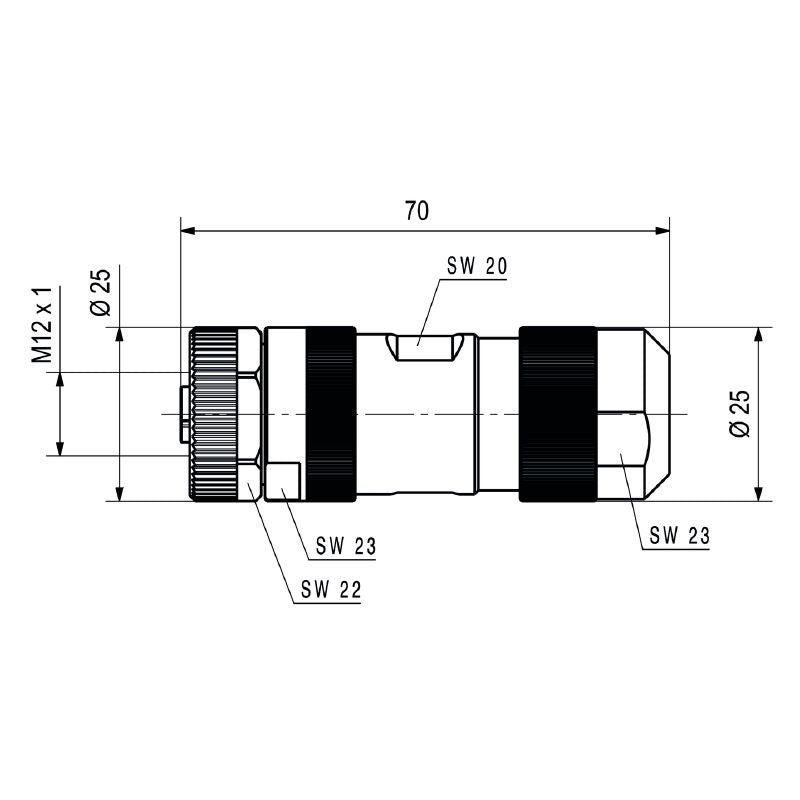

Introducing the SAIBGS-P-5K-8/13-M12, an M12 field attachable connector engineered for exceptional versatility and durability This connector adheres to RoHS compliance, making it appropriate for a wide range of applications It accommodates cable diameters from 8 mm up to 13 mm, with the capability of supporting a maximum connection cross-section of 25 mm² Featuring a female contact constructed from copper-zinc with a gold-plated surface, this connector is designed for reliable performance.

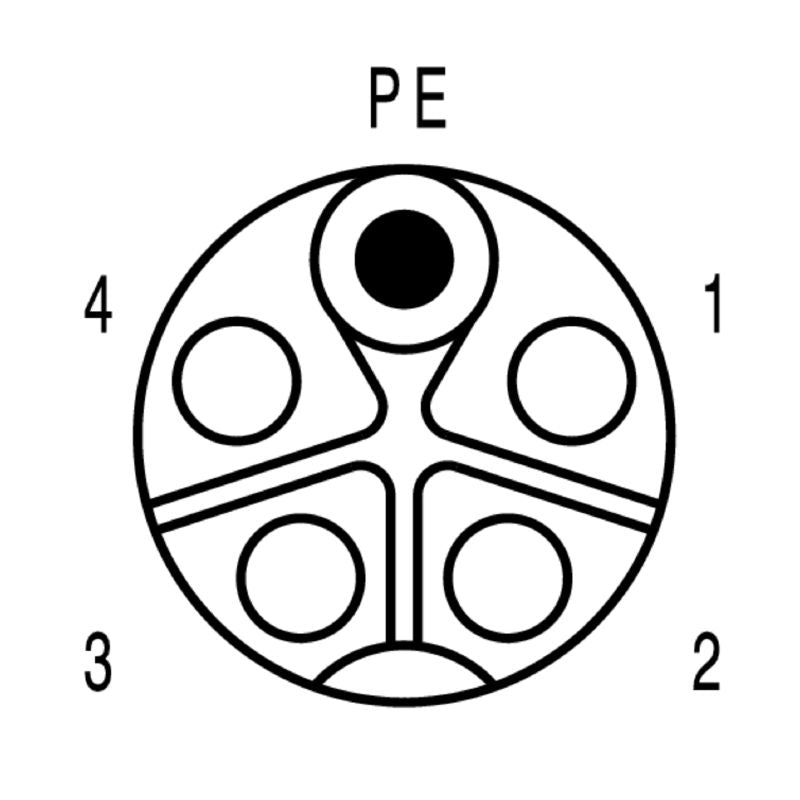

It can handle a nominal current of 12 A and a voltage of up to 630 V, ensuring secure connections across its 5 poles With a minimum of 100 plugging cycles, it’s built to last and is rated with a pollution severity of 3, proving itself suitable for demanding environments The SAIBGS-P-5K-8/13-M12 boasts a high protection rating of IP67, making it resilient in harsh conditions It functions effectively across a temperature range of -40 to +85 °C and features a secure screw connection with a diecast zinc threaded ring, ensuring steadfast reliability in any setting.

Features and Benefits:

•Meets RoHS compliance status.

•Female contact gender.

•Cable diameter accommodates between 8 mm and 13 mm.

•Maximum plugging cycles of ≥ 100.

•High protection degree IP67.

Specifications:
