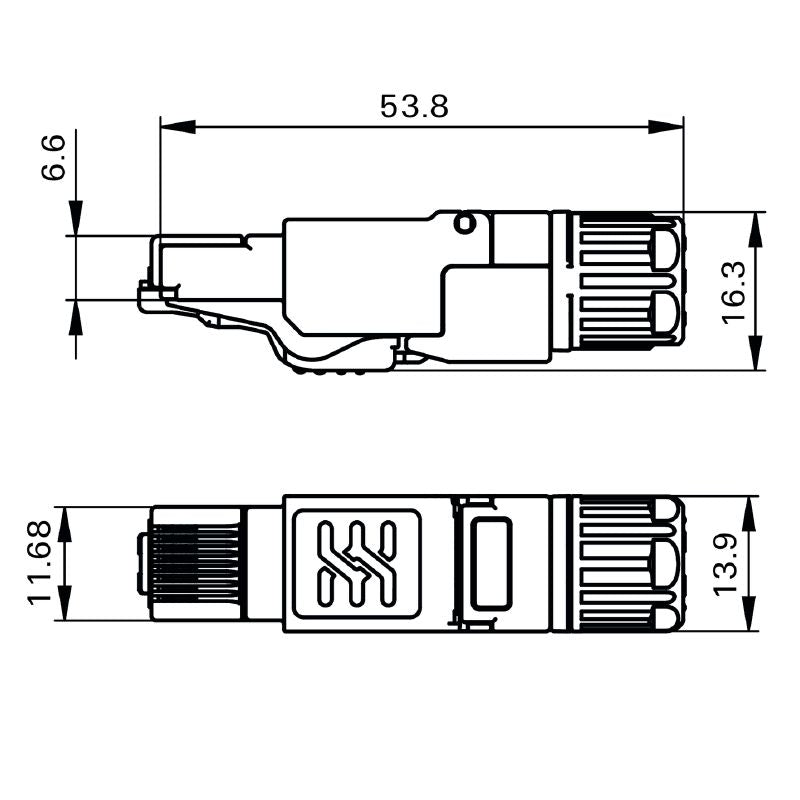

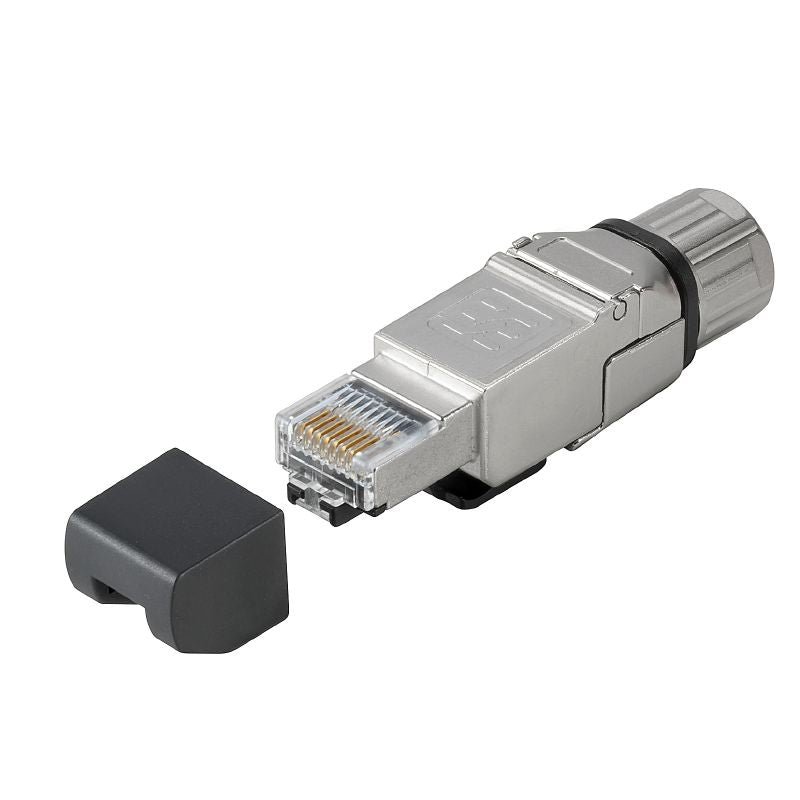

2703440000 - Cat.6 RJ45 Plug with Piercing Contacts & Cable Gland

2703440000 - Cat.6 RJ45 Plug with Piercing Contacts & Cable Gland

SKU: 2703440000   Download PDF

Select a Variant:
  • 2703440000 - Cat.6 RJ45 Plug with Piercing Contacts & Cable Gland
Qty:
Now $22.63   Web pricing policy
BEFORE   $0.00 Now $22.63 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Discover the reliability of the RJ45 connector, designed with piercing contacts for seamless straight connections This high-performance plug features a cable gland and complies with Cat6 A/Class E A specifications as outlined by ISO/IEC 11801 2010 and EIA/TIA T568 A standards It comes with necessary certification, including the cULus certificate number E471884 Ideal for a wide range of applications, this connector guarantees dependable networking solutions.

Features and Benefits:

    •Net weight is 22.88 g.

    •Operating temperature range is -40 °C to 85 °C.

    •Compliant with RoHS without exemptions.

    •Connection diameter options for solid and flexible wires.

    •Plugging cycles rating up to 750.

    •Ability to reconnect up to 4 cycles with the same cross-section.

    •Current-carrying capacity is 1 A at 50 °C.

    •Dielectric strength ratings of ≥ 1000 V AC/DC for contact to contact and ≥ 1500 V AC/DC for contact to shield.

    •Insulation resistance minimum of ≥ 500 MΩ.

Specifications:

 Connection 1 RJ45
 Connection 2 Piercing
 Wiring EIA/TIA T568 A
 Housing main material Zinc diecast, nickel-plated
 Insulation cross-section, min. 0.85 mm
 Insulation cross-section, max. 1.1 mm
 Category Cat.6 A / Class E A
 Contact surface Gold over nickel
 Connection diameter, solid 0.41...0.51 mm
 Conductor connection cross-section, solid (AWG) AWG 26...AWG 24
 Connection diameter, flexible 0.46...0.61 mm
 Conductor connection cross-section, flexible (AWG) AWG 27...AWG 24
 Conductor connection cross-section, extremely flexible 0.51, Approval of the cable by Weidmüller necessary
 Conductor connection cross-section, extremely flexible (AWG) AWG 26, Approval of the cable by Weidmüller necessary
 Note, very finely stranded line connection Approval of the cable by Weidmüller necessary
 Sheath diameter, min. 5 mm
 Sheath diameter, max. 9 mm
 Shielding 360° all-round enclosure
 Protection degree IP20
 Electrical properties {'Contact resistance': '≤ 20 mΩ', 'Current-carrying capacity at 50 °C': '1 A', 'Dielectric strength, contact / contact': '≥ 1000 V AC/DC', 'Dielectric strength, contact / shield': '≥ 1500 V AC/DC', 'Insulation resistance': '≥ 500 MΩ', 'PoE / PoE+': 'conforming to IEEE 802.3at'}
 Certificate no. (cULus) E471884
 Certificate No. (DNV) TAE00003EW
 Connector standard IEC 60603-7-51
