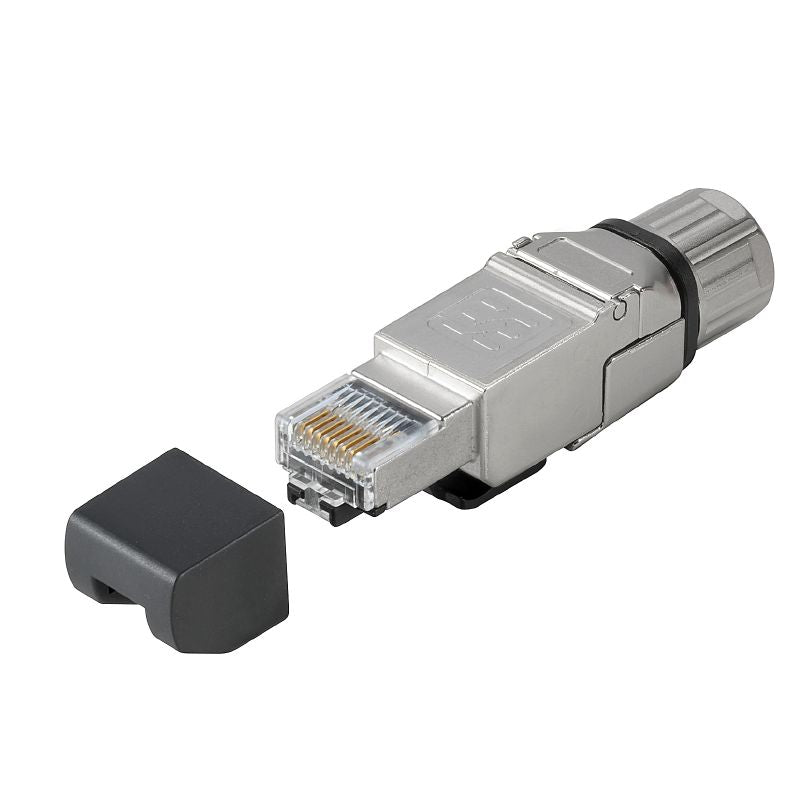

2703410000 - Durable Cat.6A RJ45 Connector with Cable Gland and Piercing Contacts

2703410000 - Durable Cat.6A RJ45 Connector with Cable Gland and Piercing Contacts

SKU: 2703410000   Download PDF

Select a Variant:
  • 2703410000 - Durable Cat.6A RJ45 Connector with Cable Gland and Piercing Contacts
Qty:
Now $20.57   Web pricing policy
BEFORE   $0.00 Now $20.57 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Introducing the RJ45 connector, designed with a straight structure and equipped with piercing contacts, along with a secure cable gland for optimal connectivity This product adheres to the Category 6A standards set by ISO/IEC 11801:2010 and EIA/TIA T568 B specifications, showcasing its commitment to quality performance With an exceptional operational temperature range from -40 °C to 85 °C, this connector is versatile and reliable under various conditions.

It also meets RoHS compliance requirements without exemptions, making it an eco-friendly choice The sturdy housing is crafted from nickel-plated zinc diecast, ensuring long-lasting durability for your networking needs.

Features and Benefits:

    •Compliant with RoHS without exemptions.

    •180-degree outlet direction.

    •Allows reconnecting up to 4 cycles with the same cross-section.

    •Features a total shielding with IP20 protection degree.

    •Can accommodate a variety of conductor connection cross-sections for flexibility.

Specifications:

 Operating temperature: -40 °C to 85 °C
 Housing main material: Zinc diecast, nickel-plated
 Category: Cat.6A / Class EA
 Connection 1: RJ45
 Connection 2: Piercing
 Plugging cycles: 750
 Protection degree: IP20
 Contact resistance: ≤ 20 mΩ
 Current-carrying capacity at 50 °C: 1 A
 Dielectric strength, contact/contact: ≥ 1000 V AC/DC
 Dielectric strength, contact/shield: ≥ 1500 V AC/DC
 Insulation resistance: ≥ 500 MΩ
 PoE / PoE+: conforming to IEEE 802.3at
 Net weight: 26.19 g
 Insulation cross-section, min.: 1.1 mm
 Insulation cross-section, max.: 1.6 mm
 Connection diameter, solid: 0.51...0.64 mm
 Conductor connection cross-section, solid (AWG): AWG 24...AWG 22
 Connection diameter, flexible: 0.46...0.76 mm
 Conductor connection cross-section, flexible (AWG): AWG 27...AWG 22
 Sheath diameter, min.: 5 mm
 Sheath diameter, max.: 9 mm
 Contact surface: Gold over nickel
