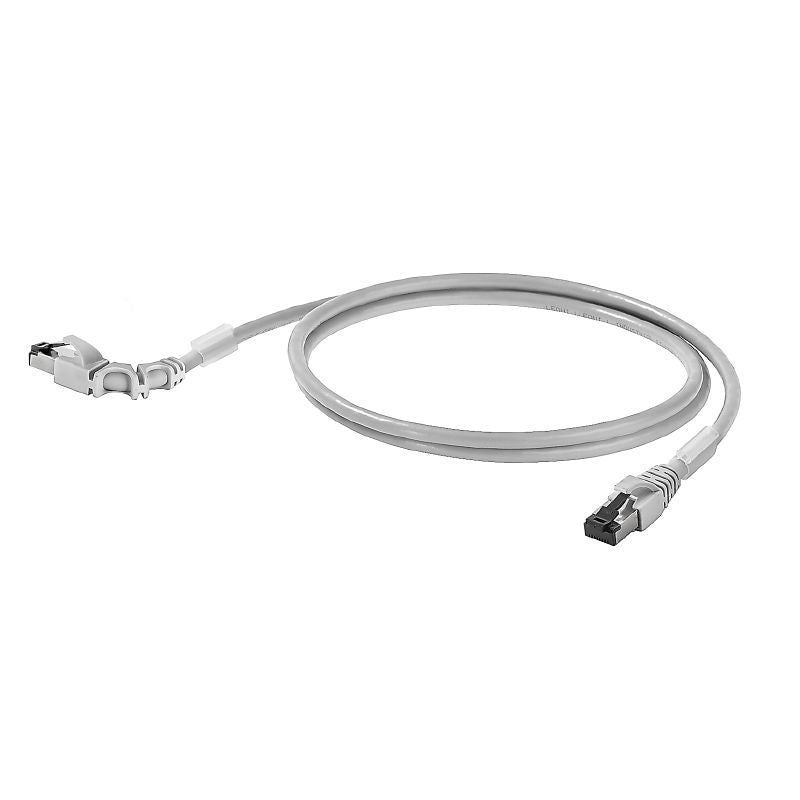

2703330020 - 2m LSZH RJ45 Patch Cable, Right-Angled, Cat.6A

2703330020 - 2m LSZH RJ45 Patch Cable, Right-Angled, Cat.6A

SKU: 2703330020   Download PDF

Select a Variant:
  • 2703330020 - 2m LSZH RJ45 Patch Cable, Right-Angled, Cat.6A
Qty:
Now $8.93   Web pricing policy
BEFORE   $0.00 Now $8.93 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Elevate your connectivity with this 2-meter patch cable, featuring a right-angled RJ45 connector for easy installation in tight spaces It boasts an IP20 rating and complies with Cat6A standards for lengths under 20 meters and meets Class EA specifications for longer runs, in accordance with ISO/IEC 11801:2010 The cable is wrapped in a low-smoke, zero-halogen (LSZH) sheath, ensuring safety without compromising performance.

Perfect for both home and office use.

Features and Benefits:

    •IP 20 rated connectors.

    •Suitable for both Cat.6A and Class EA applications based on length.

    •Low-smoke, zero-halogen (LSZH) sheath.

Specifications:

 Length: 2 m
 Operating temperature: -20 °C...60 °C
 Installation temperature: 0 °C...50 °C
 Current-carrying capacity at 50 °C: 1 A
 Category: <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
 Characteristic impedance: 100 ± 15 Ω at 1–100 MHz
 Delay skew: 2.5 ns/100m
 Operating voltage: 50 V DC
 Resistance differential: 5 %
 Halogen: halogen-free, according to IEC 60754-2
 Sheath diameter, max.: 5.9 mm
 Sheath diameter, min.: 5.5 mm
 Insulation cross-section: 1.04 mm
 Number of wires: 8
 Colour sequence or wires - wire pairs: white - blue, white - orange, white - green, white - brown
