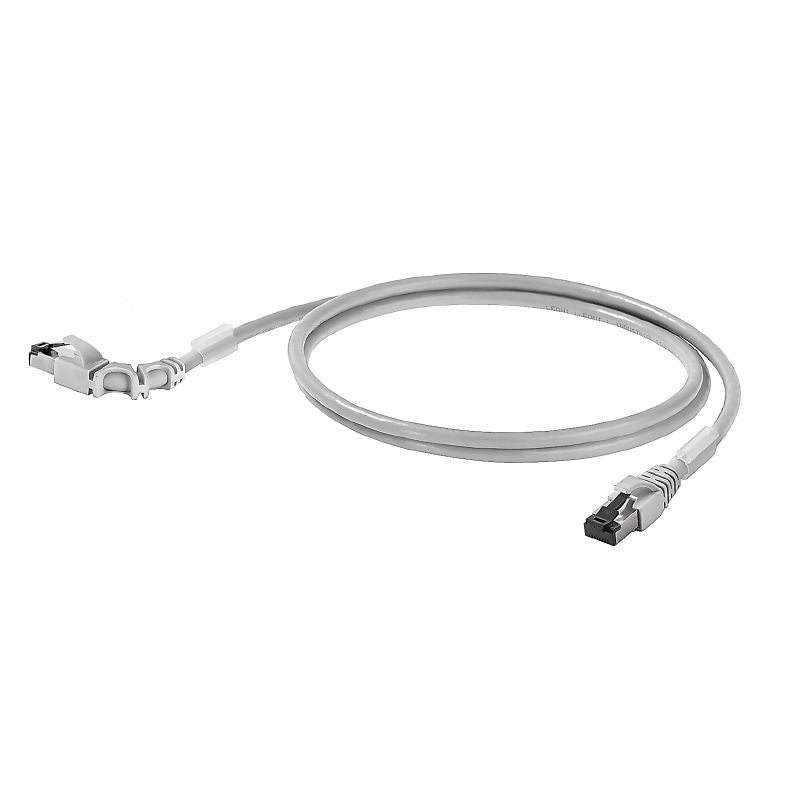

2703330005 - 0.5m RJ45 Patch Cable for Category 6A Applications

2703330005 - 0.5m RJ45 Patch Cable for Category 6A Applications

SKU: 2703330005   Download PDF

Select a Variant:
  • 2703330005 - 0.5m RJ45 Patch Cable for Category 6A Applications
Qty:
Now $5.65   Web pricing policy
BEFORE   $0.00 Now $5.65 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

Enhance your communication setup with this high-performance patch cable featuring RJ45 connectors and IP 20 ratings This cable is perfect for category 6A applications for lengths up to 20 meters, and for longer runs, it adheres to Class EA standards set out in ISO/IEC 11801:2010 Crafted from low smoke zero halogen (LSZH) materials, it ensures safety and longevity while maintaining optimal performance.

With a compact length of 05 meters, it’s ideal for various networking needs.

Features and Benefits:

    •Meets RoHS compliance.

    •Operating temperature ranges from -20 °C to 60 °C.

    •Allows for PoE applications consistent with IEEE 802.3at.

    •Constructed with twisted pairs for enhanced performance.

    •Halogen-free material conforming to IEC 60754-2.

Specifications:

 Current-carrying capacity at 50 °C 1 A
 Sheath diameter, max 5.9 mm
 Sheath diameter, min 5.5 mm
 Insulation cross-section 1.04 mm
 Min. bending radius, once only 4 x cable diameter
 Electrical properties {'Capacity at 1 kHz': '46 nF/km', 'Operating voltage': '50 V DC', 'Characteristic impedance': '100 ± 15 Ω at 1–100 MHz', 'Delay skew': '2.5 ns/100m', 'Resistance differential': '5%', 'Test voltage: wire-wire-shield': '2.5 kV / DC for 2 sec'}
 Temperature {'Storage temperature': '-20 °C...60 °C', 'Operating temperature': '-20 °C...60 °C', 'Installation temperature': '0 °C...50 °C'}

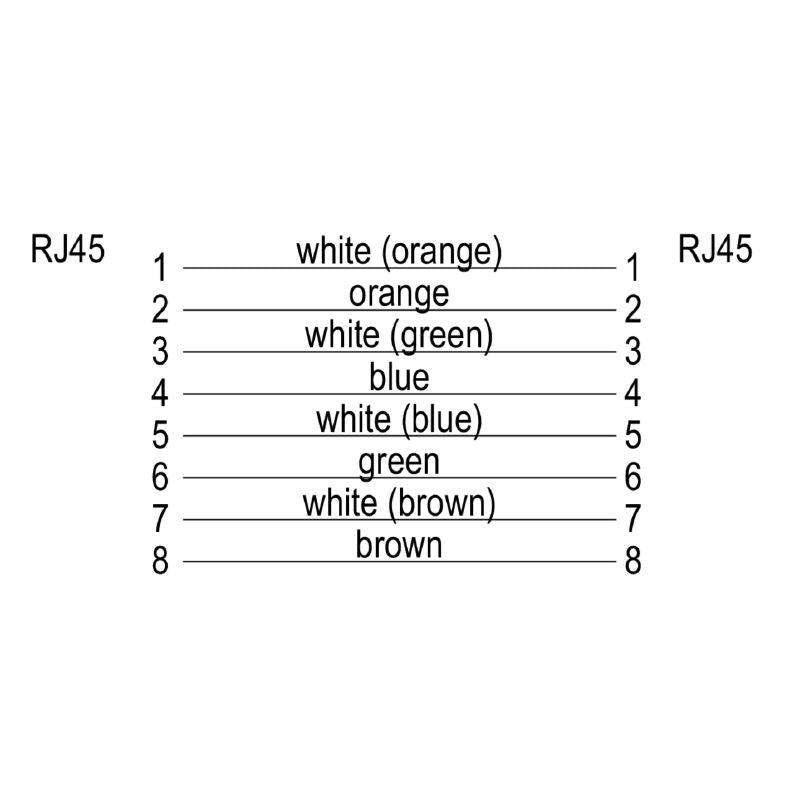

 Cable structure {'Arrangement of wire cores': 'Twisted pair', 'Colour sequence or wires - wire pairs': 'white - blue, white - orange, white - green, white - brown', 'Complete shielding': 'Shielding braid made from copper wiring', 'Cross-section': '4*2*AWG 27/7 - 4*2*0.1 mm²', 'Insulation': 'PE', 'Number of wires': '8', 'Wire pair shielding': 'Aluminium foil', 'Shielding': 'S/FTP', 'Strands': '7'}

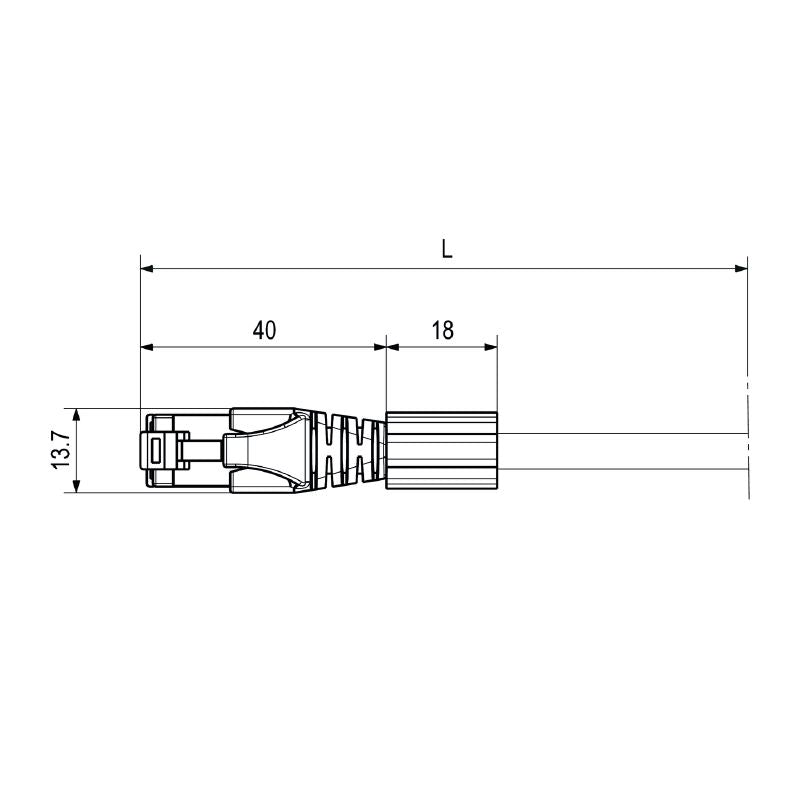

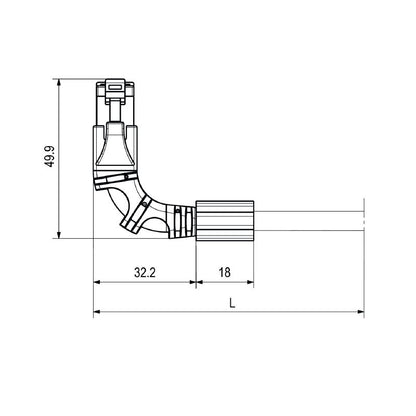

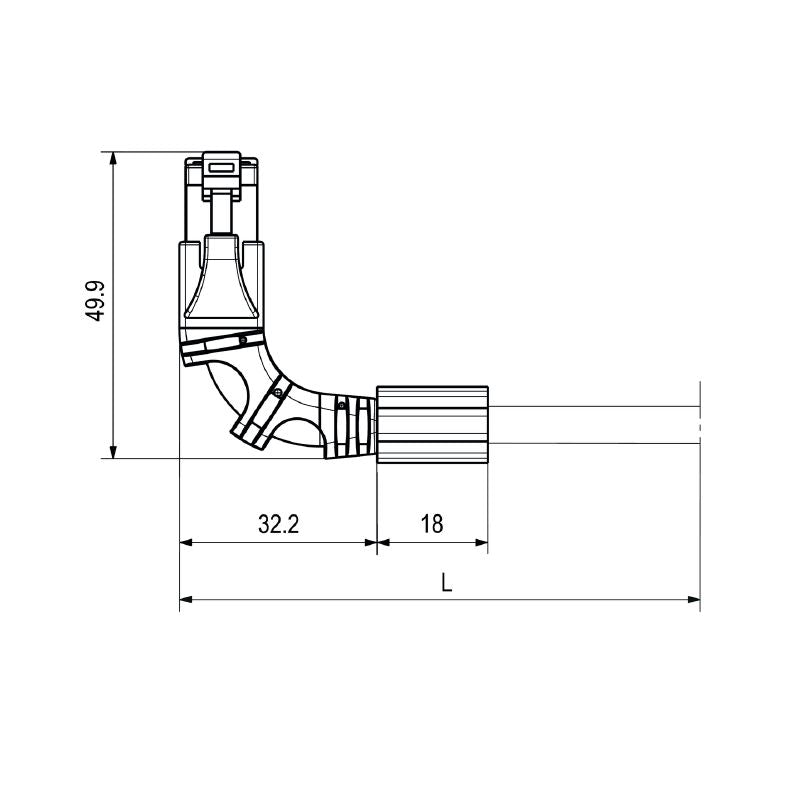

 Plug Details {'Plug left': 'RJ45, IP20, male contact, straight, plug, Plastic, shielded', 'Plug right': 'RJ45, IP20, male contact, angled 90° right, plug, Plastic, shielded'}
