2702720000 - Cat.6A Customizable Plug-in Connector, 9mm Max Cable Diameter

2702720000 - Cat.6A Customizable Plug-in Connector, 9mm Max Cable Diameter

SKU: 2702720000   Download PDF

Select a Variant:
  • 2702720000 - Cat.6A Customizable Plug-in Connector, 9mm Max Cable Diameter
Qty:
Now $50.78   Web pricing policy
BEFORE   $0.00 Now $50.78 Web pricing policy
Sold out
Shipping calculated at checkout.
IN STOCK
Shipping Available
Free shipping on orders above $1000. *Wires and cables only.
View full details
Product Information Resources Reviews
Product Information

Description:

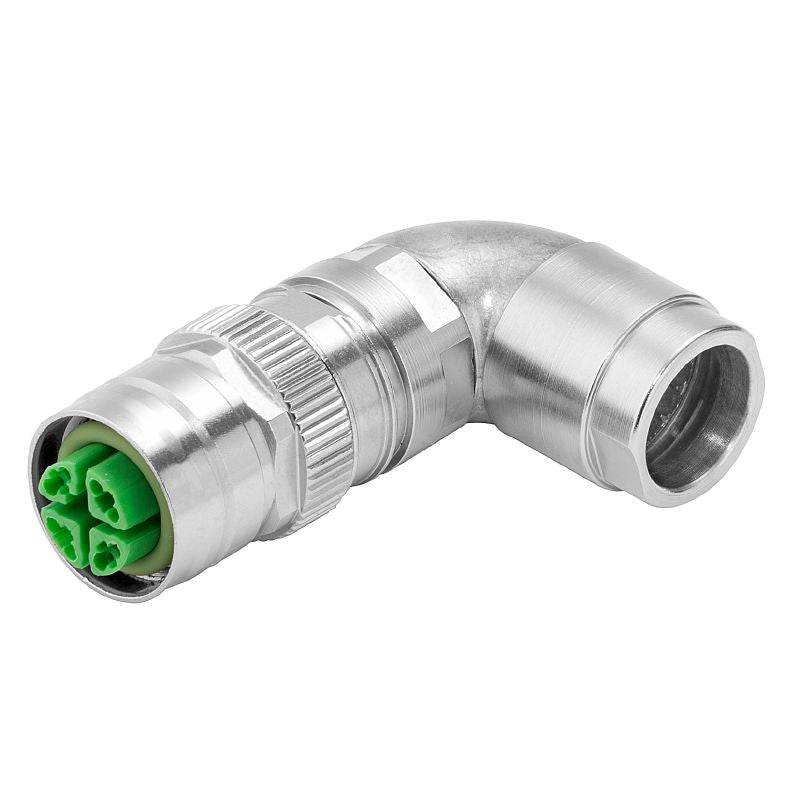

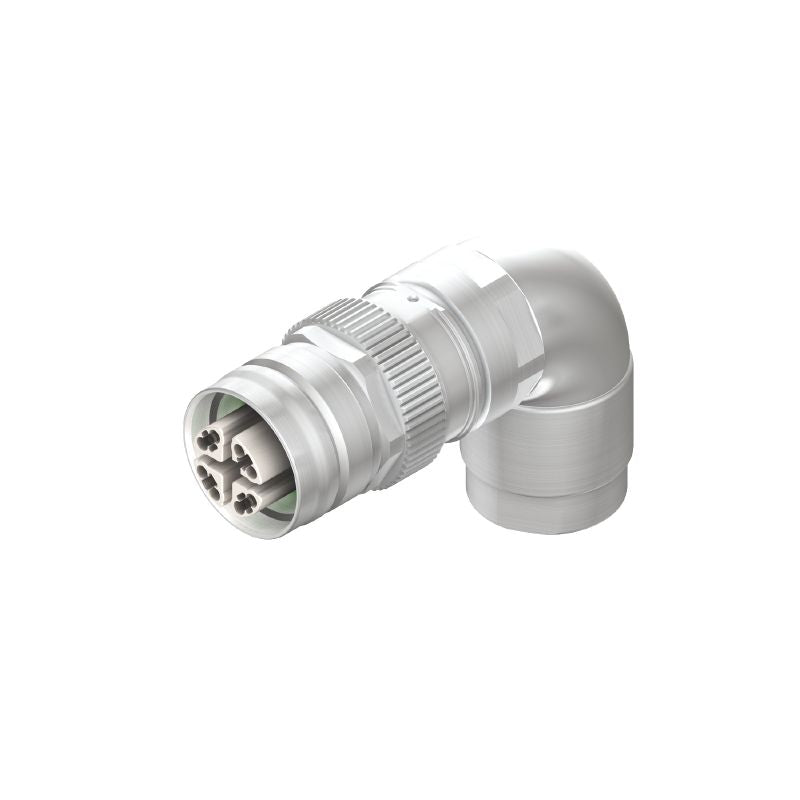

Introducing the IE-PS-M12X-90-S-TH-CG customizable plug-in connector, compliant with Cat6A / Class EA standards as defined by ISO/IEC 11801 2010 This connector features high-quality female contacts with a gold-plated finish, ensuring excellent signal integrity Accommodating cable diameters from 4 mm to 9 mm, it offers versatile connectivity options The crimp connection provides a reliable attachment, while the robust nickel-plated copper alloy housing enhances durability.

Perfect for those who require a dependable and adaptable connection solution.

Features and Benefits:

    •Compliant with RoHS exemption 6c.

    •Protection degree of IP67 when plugged.

    •Designed for at least 500 plugging cycles.

    •Screwed shield connection.

    •Suitable for nominal current of 2 A and nominal voltage of 30 V.

Specifications:

 Cable diameter, max. 9 mm
 Cable diameter, min. 4 mm
 Conductor cross-section, max. 0.34 mm²
 Conductor cross-section, min. 0.14 mm²
 Connection cross-section, max. 0.34 mm²
 Connection cross-section, min. 0.14 mm²

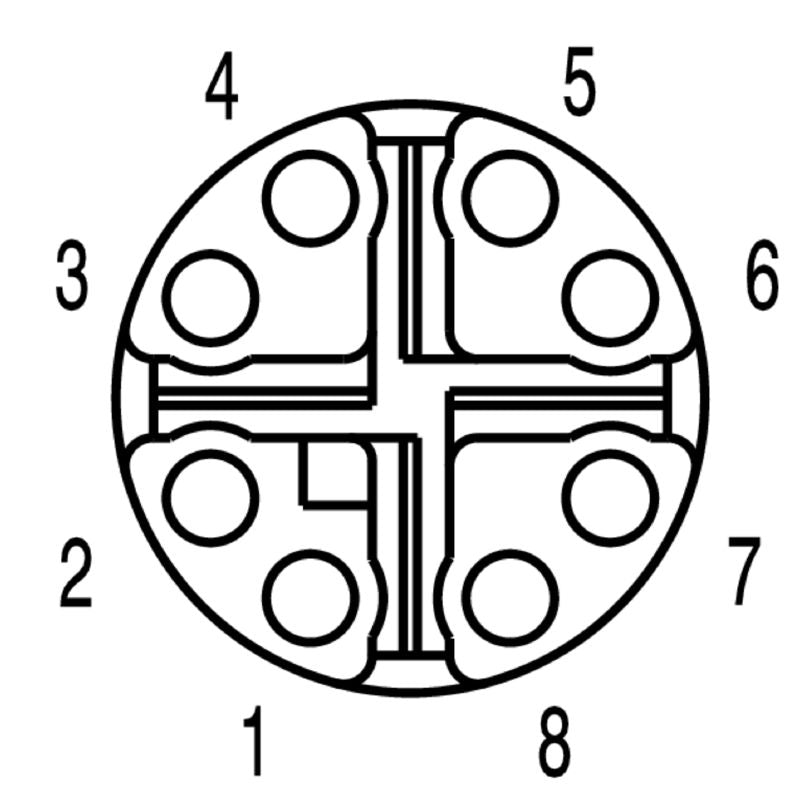

 Number of poles 8
 Connection 1 M12
 Connection 2 Crimp
 Plugging cycles ≥ 500
 Pollution severity 3
 Standards IEC 61076-2-109
