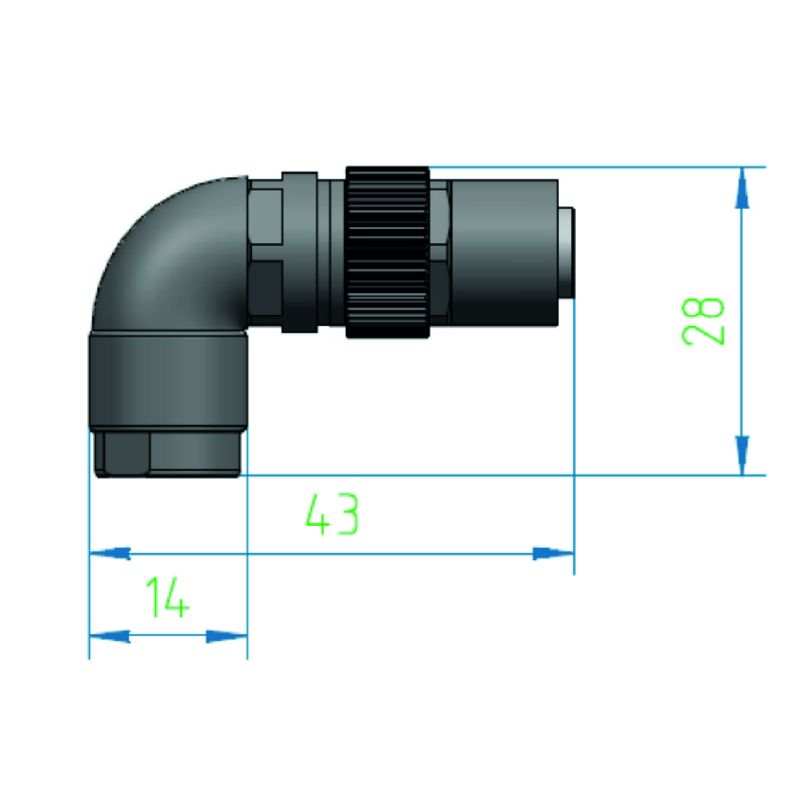

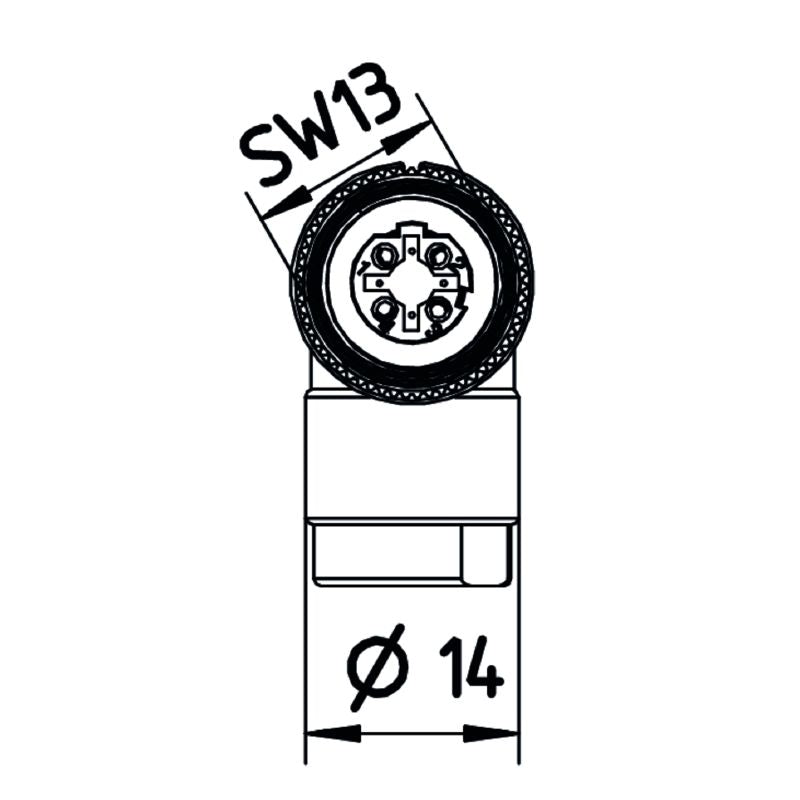

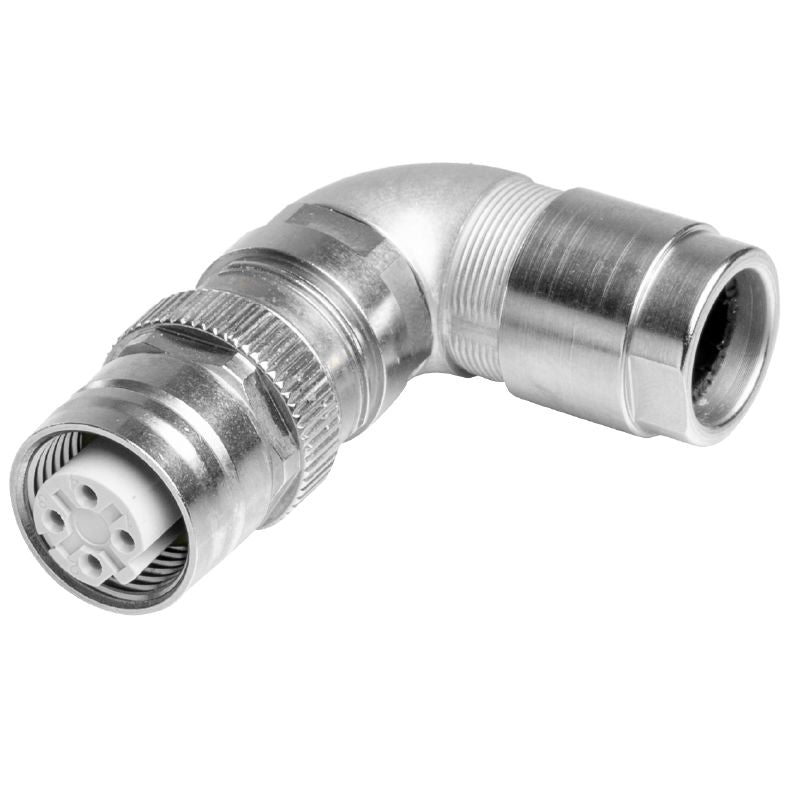

2702700000 - IP67 M12 Field Attachable Connector, D-Coded, 4-9mm Cable Support

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 field attachable connector, expertly crafted with a D-coded configuration to meet your connectivity needs This connector adheres to RoHS standards and weighs just 205 grams, making it lightweight yet reliable It accommodates cables with diameters ranging between 4 mm and 9 mm, while also supporting a conductor cross-section from 008 mm² to 075 mm² With a nominal current capacity of 4 A at a voltage of 50 V, this connector is designed for robust performance.

Its outer casing, made from durable CuZn, features a gold-plated female contact that employs a crimp connection method Offering impressive longevity, it can withstand up to 500 plugging cycles Furthermore, its IP67 protection rating ensures reliable operation in diverse environmental conditions, making it an excellent choice for various applications.

Features and Benefits:

•Gold-plated contact surface.

•IP67 protection degree.

•Suitable for a temperature range of -40 to +85 °C.

•Compliant with RoHS and REACH standards.

•Shock and vibration proof according to DIN EN 61373.

•Crimp connection type.

Specifications:
