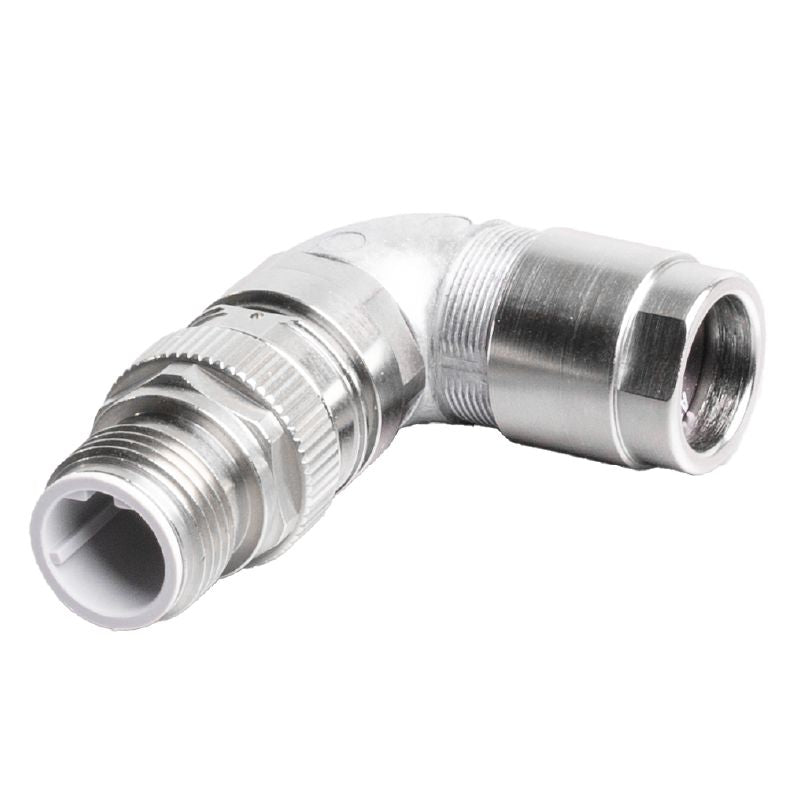

2702690000 - M12 Male Connector, IP67, 4-9mm Cable, D-Coding

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

This M12 field-attachable connector, with the order number 2702690000, meets RoHS standards for safety and environmental compliance It accommodates cable diameters between 4 mm and 9 mm and features D-coding for reliable connectivity The connector supports conductor cross-sections ranging from 008 mm² to 075 mm² and is equipped with a gold-plated male contact designed for a nominal current of 4 A at a nominal voltage of 50 V.

With its 4-pole configuration, it is engineered for over 500 plugging cycles and has a pollution severity level of 3, along with an IP67 protection rating that ensures resistance to dust and water Crafted primarily from CuZn, the housing includes a brass threaded ring with a nickel-plated finish The operating temperature for this robust connector extends from -40 °C to +85 °C, making it suitable for a wide range of applications.

Features and Benefits:

•Compliant with RoHS.

•Gold-plated contact surface.

•Supports IP67 protection degree.

•Shock and vibration proof according to DIN EN 61373 KAT2.

•Crimp connection type.

•Environmental compliance with REACH SVHC.

Specifications:
