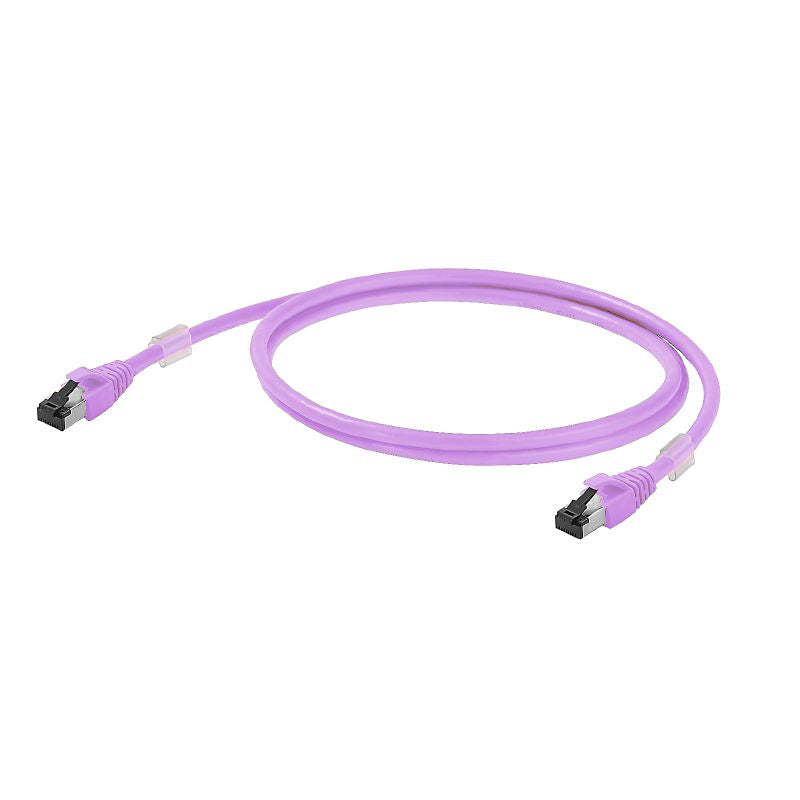

2701550002 - 0.2m Cat.6A RJ45 Patch Cable with LSZH Sheath

SKU: SKU: 2701550002 Download PDF

Select a Variant:

2701550002 - 0.2m Cat.6A RJ45 Patch Cable with LSZH Sheath

SET THE QTY:

Now $4.94 Web pricing policy

~~BEFORE $0.00~~ Now $4.94 Web pricing policy

Sold out

Shipping calculated at checkout.

IN STOCK
Shipping Available

Free shipping on orders above $1000. *Wires and cables only.

View full details

Product Information Resources Reviews

Product Information

Description:

Ensure seamless connectivity with this top-notch patch cable, equipped with RJ45 connectors that meet IP 20 standards Classified as Cat6A for lengths up to 20 meters and as Class EA for extended distances in accordance with ISO/IEC 11801:2010, this cable promises reliable performance Its construction features a low smoke zero halogen (LSZH) sheath, and it measures a compact 02 meters, making it an efficient choice for various networking needs.

Features and Benefits:

•Conforms to RoHS regulations without exemptions.

•Halogen-free according to IEC 60754-2 standards.

•Compliant with ANSI/TIA/EIA-568-B.2-10, ISO/IEC 11801:2002, and EN50173-1:2007.

•Features full shielding with copper wiring.

•Designed for a maximum operating voltage of 50 V DC and a rating of 30 V AC / 42.4 V DC.

Specifications:

Length	0.2 m
Operating temperature	-20 °C to 60 °C
Storage temperature	-20 °C to 60 °C
Installation temperature	0 °C to 50 °C
Current-carrying capacity at 50 °C	1 A
Category	<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Characteristic impedance	100 ± 15 Ω at 1–100 MHz
Transmission rate	10 Gbit/s
Sheath diameter	5.5 - 5.9 mm
Electrical properties	{'Capacity at 1 kHz': '46 nF/km', 'Coupling attenuation up to 1000 MHz': '80 dB', 'Delay skew': '2.5 ns/100m'}
Plug	RJ45, IP20, male contact, straight, plug, Plastic, shielded
Colour	violet
