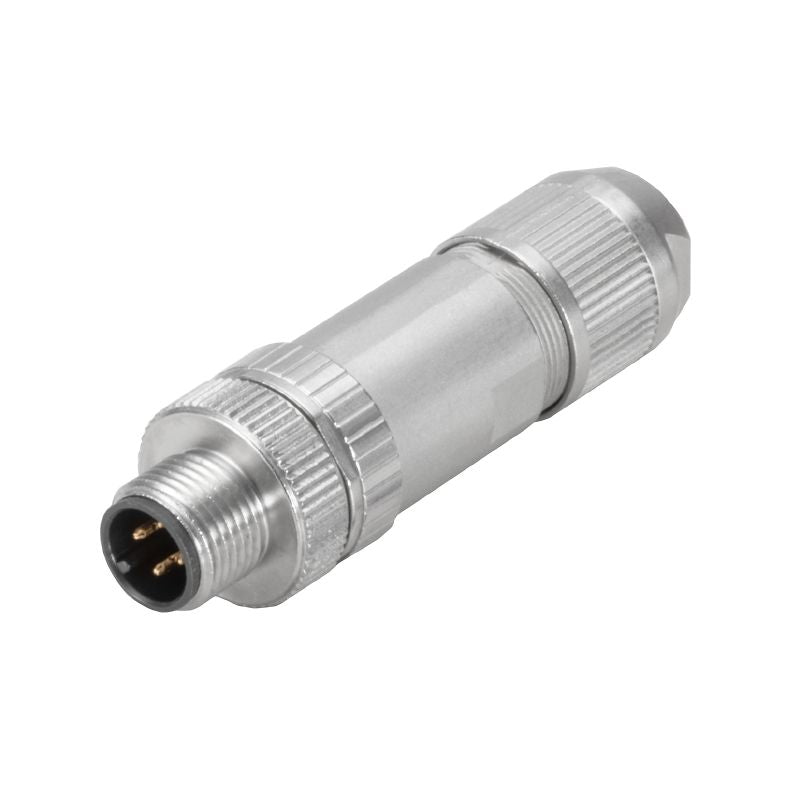

2681680000 - M12 Connector, 4-8mm Cable, IP67 Rated, -40°C to 85°C

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the versatile M12 series field attachable connector, expertly crafted to accommodate connectable cables with diameters between 4 mm and 8 mm This product is fully compliant with RoHS standards and holds a UL certification (E307231) Engineered with a D-coded design in accordance with ISO/IEC 11801, it is made from durable PA 66 material and features a male contact configuration The connector is built to endure extreme temperatures, functioning effectively from -40 °C to +85 °C.

With an IP67 rating, it offers robust protection against environmental elements, while safely supporting a nominal current of 4 A and a nominal voltage of 60 V.

Features and Benefits:

•RoHS compliant without exemptions.

•No SVHC above 0.1 wt%.

•Protection degree of IP67 for superior environmental resistance.

•Capability to handle conductor cross-sections from 0.14 mm² to 0.75 mm².

•Shock and vibration resistance compliant with EN 50155:2001 standards.

Specifications:
