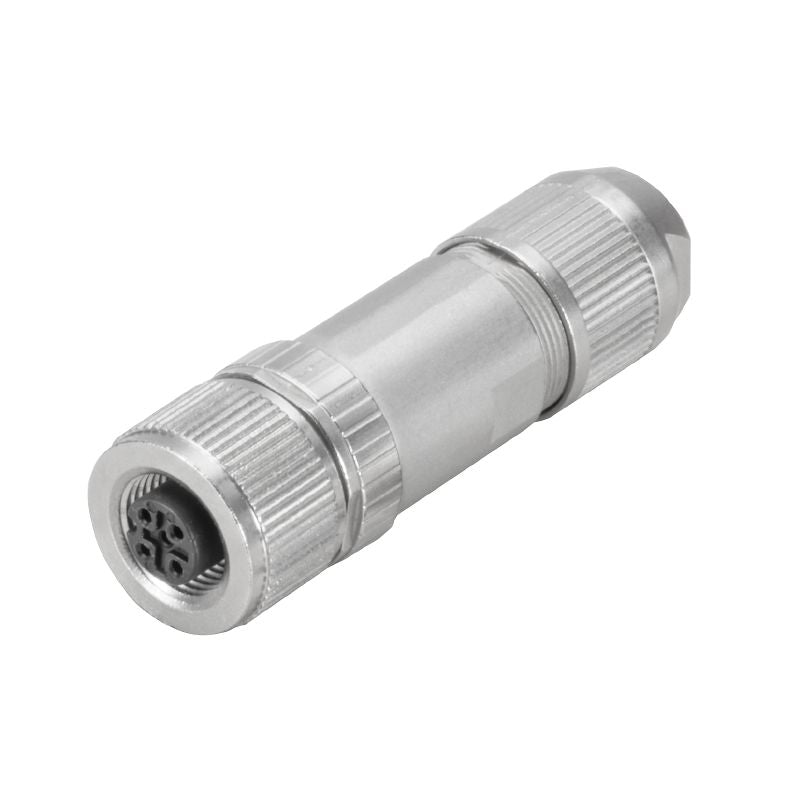

2681620000 - M12 Female Connector, 4-8mm Cable, IP67, RoHS Compliant

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing a versatile M12 field attachable connector, identified by the order number 2681620000, that meets RoHS standards, verified by certificate number E307231 from cULus This connector is designed for flexible plug-in applications, suitable for cable diameters ranging from 4 mm to 8 mm Featuring an A-coded design, it accommodates conductor cross-sections between 014 mm² and 075 mm², with a female contact configuration made from durable PA 66 material.

With a nickel/gold contact surface, this connector guarantees reliable performance, offering an impressive insulation resistance of at least 100 MΩ It supports a nominal current of up to 4 A and a nominal voltage of 60 V across 5 poles The connector is rated for pollution severity level 3 and has a high protection degree of IP67, ensuring it withstands harsh environments Its housing can operate within a temperature range of -40 to +85 °C.

Additionally, the sturdy diecast zinc threaded ring secures the connection, utilizing a PUSH IN method for added convenience.

Features and Benefits:

•Cable diameter maximum is 8 mm and minimum is 4 mm.

•Insulation resistance ≥ 100 MΩ.

•Protection degree IP67.

•Shock and vibration proof design.

•Material used for housing is PA 66.

•Contact surface consists of Ni/Au.

Specifications:
