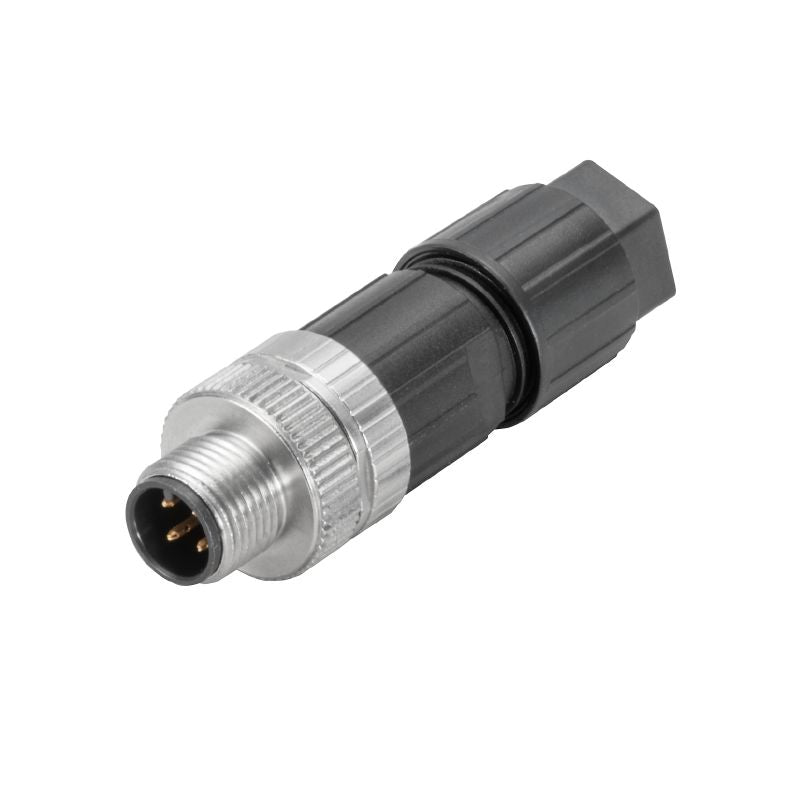

2681560000 - IP67 Male Connector for 4-8mm Cables, 4A Capacity

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the SAISP-5A-4/8-M12, a versatile field attachable connector engineered to accommodate a range of connection requirements Adhering to RoHS standards, this connector boasts cULus certification (file number E307231) for added reliability It's designed to fit cables with diameters between 4 mm and 8 mm The male contact offers exceptional conductivity with a maximum conductor cross-section of 0.

75 mm² and a minimum of 014 mm², thanks to its high-quality nickel and gold contact surface Capable of handling a nominal current of 4 A at 60 V, this connector is also rated IP67, guaranteeing resistance to dust and water, making it ideal for challenging environments.

Features and Benefits:

•Suitable for use in high demanding environments with IP67 protection.

•Shock and vibration proof in compliance with EN 50155:2001.

•Conforms to fire safety standards for railway vehicles per DIN EN 45545-2.

•Connection feature optimized for ease of use with PUSH IN technology.

Specifications:
