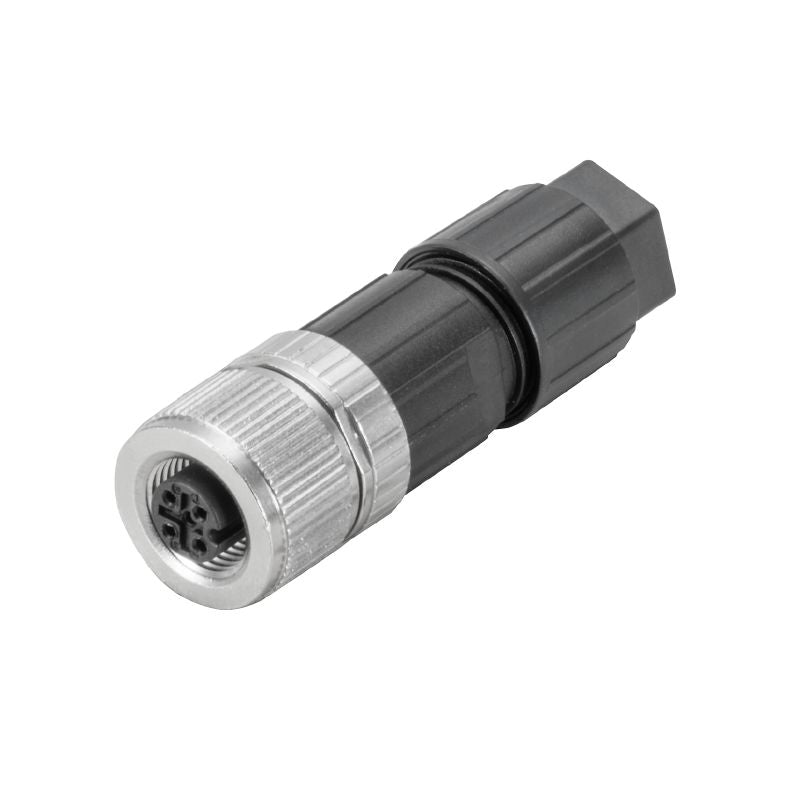

2681500000 - M12 IP67 Field Connector, 4A, 4-8mm Cable Diameter

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Discover the M12 field attachable connector, model SAIBP-4A-4/8-M12, engineered for versatility and designed to comply with various industry standards, including RoHS This connector offers customizable plug-in options for flexible installations It accommodates cables with diameters between 4 mm and 8 mm, supporting conductor cross-sections from 014 mm² to 075 mm² Featuring a reliable female contact and crafted from robust PA 66 plastic, this connector ensures long-lasting performance.

It operates at a nominal current of 4 A and a voltage of 250 V, while its IP67 rating provides excellent protection against dust and water With a temperature operating range of -40 °C to 85 °C, it’s suitable for a wide array of environments.

Features and Benefits:

•RoHS compliant without exemption.

•Shock and vibration proof according to EN 50155:2001.

•Fire safety standard for railway vehicles DIN EN 45545-2.

•Coding is A-coded.

•Diecast zinc threaded ring material.

•No shield connection.

Specifications:
