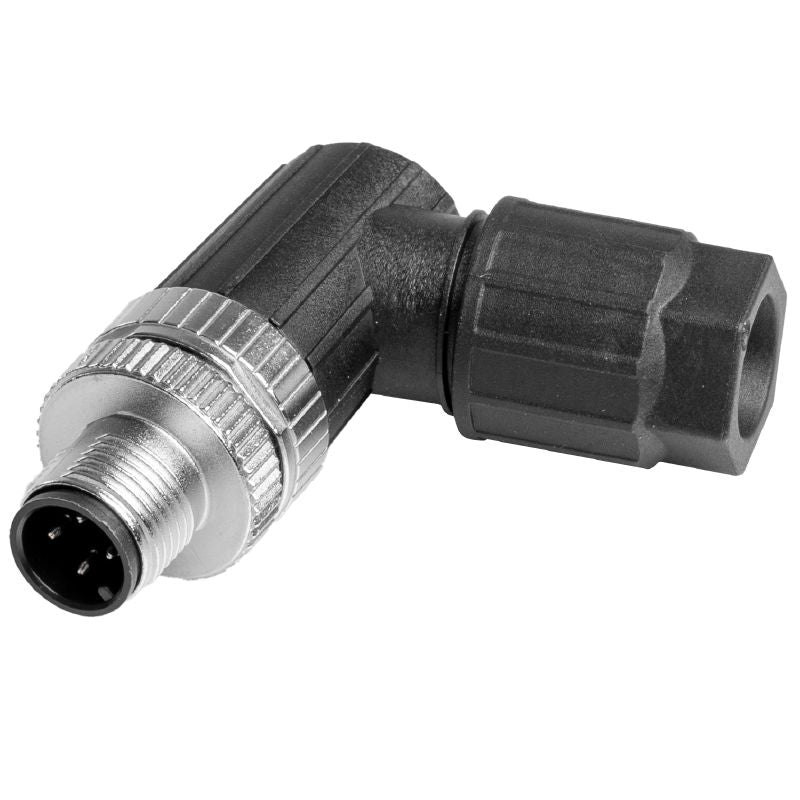

2681490000 - M12 Field Attachable Connector, IP67, 4-8mm Cable Range

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

Introducing the M12 field attachable connector, engineered for seamless connectivity while adhering to environmental and safety regulations This UL-certified product (cULus number E307231) guarantees compliance with industry standards It accommodates cable diameters from 4 mm to 8 mm and features coding type A The contact surface is crafted from a combination of Nickel and Gold for optimal performance, while the durable housing is constructed from PA 66.

With an operational temperature range of -40 to +85 °C, this connector is rated for a nominal current of 4 A and a voltage of 250 V Its IP67 protection ensures reliable use in challenging conditions.

Features and Benefits:

•RoHS compliant without exemption.

•Lightweight at 19.36 g.

•Male contact gender.

•PUSH IN connection type.

•Temperature range of housing from -40 to +85 °C.

•Shock and vibration proof according to EN 50155:2001.

•Environmental compliance for REACH SVHC.

Specifications:
