2680630005 - 0.5m LiYY Pre-assembled Cable for GE FANUC Connections

*Data provided on this page is subject to change based on different manufacturers' variances
** Images are for display purposes only refer to Product Technical Details for accurate information on the product.
In the case the material only comes in a predetermined color or doesn’t come with any color

Description:

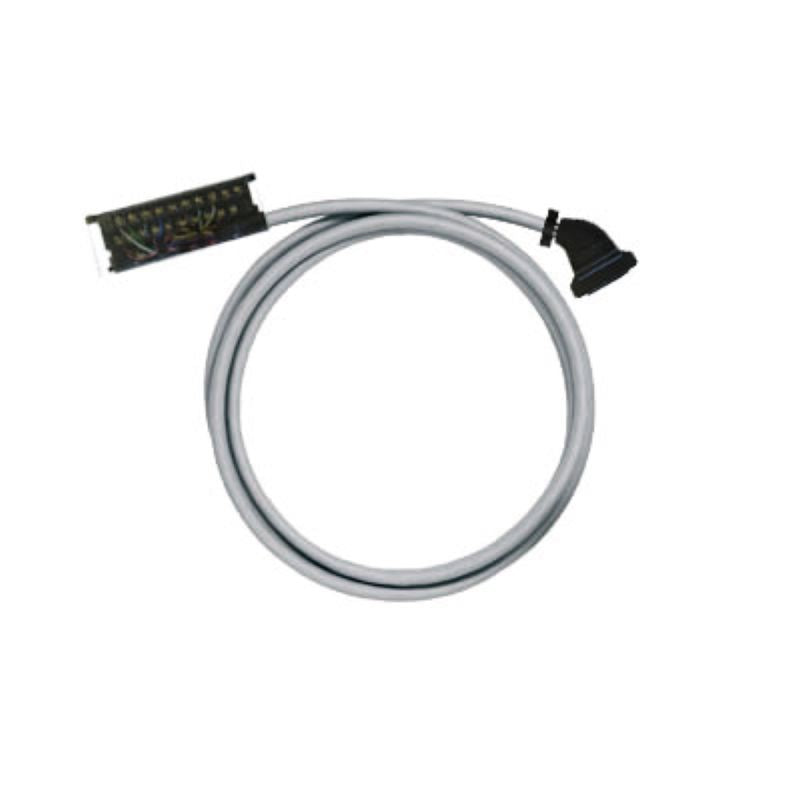

Ensure seamless connectivity with the pre-assembled PAC-RX3I-HE20-V3-0M5 cable, featuring a durable LiYY cable with a wire cross-section of 025 mm² This 05-meter cable is designed with connectors compatible with the GE FANUC IC694ACC311 on one end and a HE10 flat cable connector on the opposite end Meeting RoHS standards, it operates efficiently in temperatures ranging from -10°C to 50°C, making it a reliable choice for various applications.

Features and Benefits:

•Net weight of 165 g.

•Outer diameter of 12.4 ± 1 mm.

•Permissible current strength per path is 1 A.

•Rated voltage is ≤ 60 Vdc and ≤ 25 Vac.

•Resistance is ≤ 80 mΩ/m.

•Total current maximum is 3 A.

•Basic material is PVC.

•Compliant with RoHS, with exemption 6c.

Specifications:
