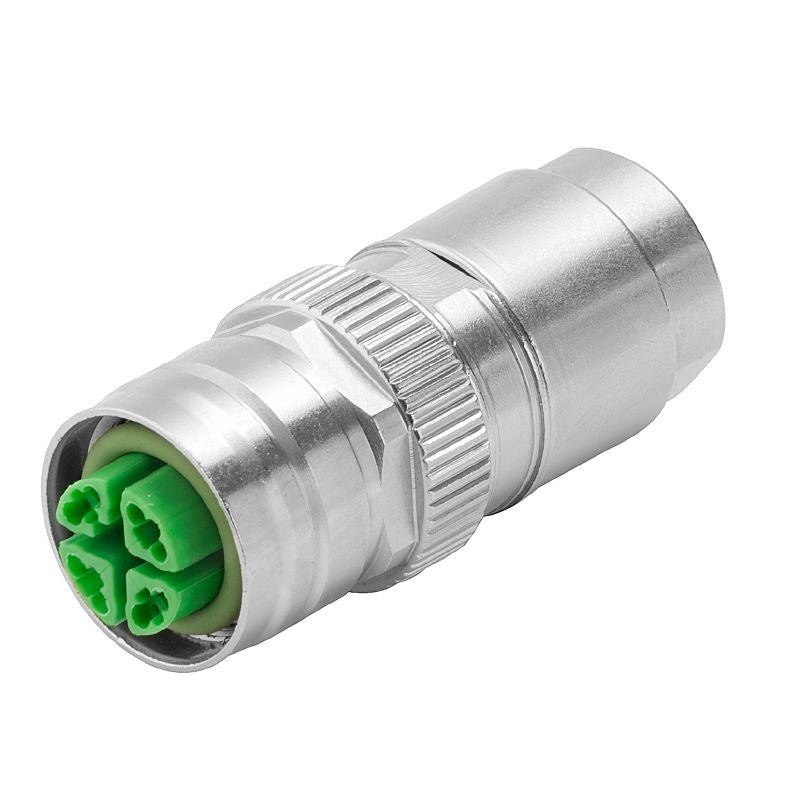

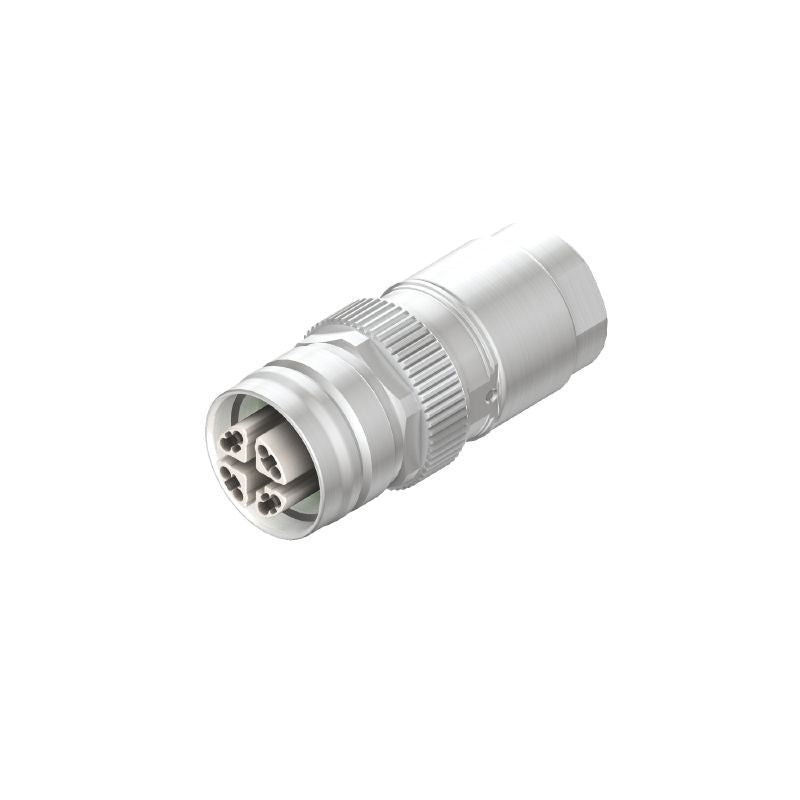

2672440000 - IP67 Customizable Gold-Plated Plug-In Connector with 9mm Cable Diameter

Description:

Introducing the IE-PS-M12X-180-S-TH-CG, a versatile plug-in connector that meets RoHS standards, including its exemptions This connector is engineered for user customization and features a cable diameter range from 4 mm to 9 mm It accommodates conductor cross-sections between 014 mm² and 034 mm², making it a flexible choice for various applications Crafted for durability, the female contact has a gold-plated finish, while the housing is constructed from a robust nickel-plated copper alloy, ensuring both reliability and longevity.

With a nominal current capacity of 4 A and a voltage rating of 50 V, this connector is suitable for demanding environments, classified under pollution degree 3 When connected, it boasts an IP67 rating for dust and water resistance and is designed to withstand at least 500 plugging cycles, making it an excellent choice for high-performance needs.

Features and Benefits:

•Gold-plated contact surface.

•Housing made from Cu alloy Ni plated.

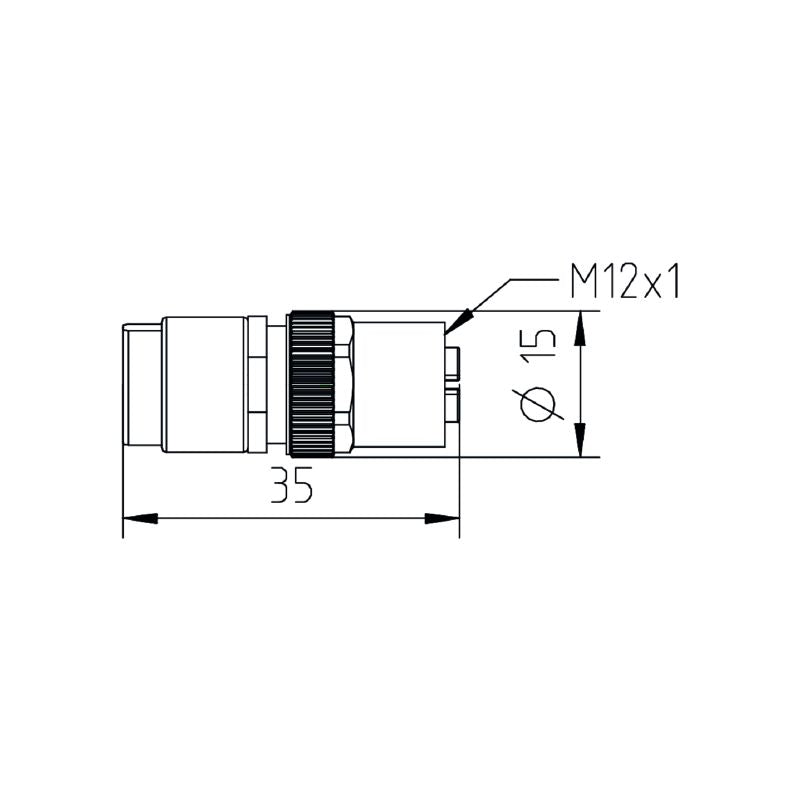

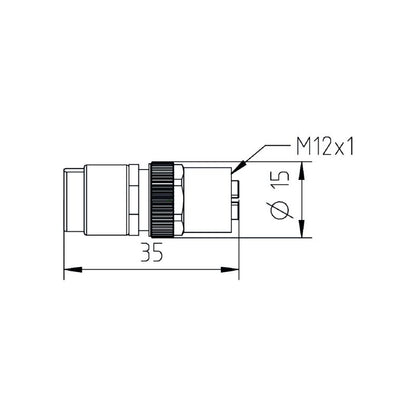

•Connection1 features M12 connector.

•High durability with ≥ 500 plugging cycles.

•IP67 protection degree when plugged.

Specifications:
